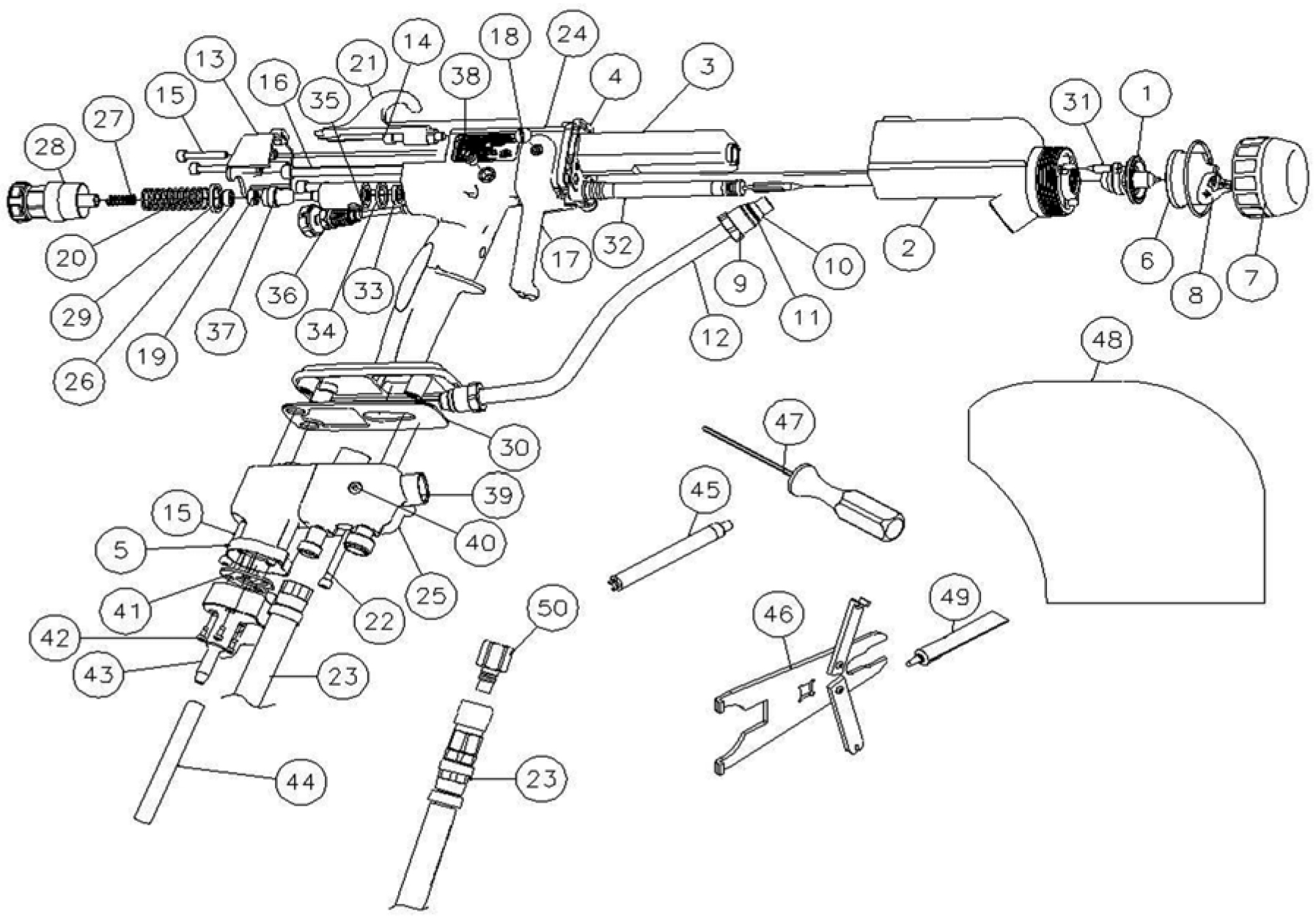

| Solo LP 65kV (solvent-based paint) - Pistolet elektrostatyczny ręczny |
| |
 |
| |
| Ref. |
Part no. |
Description |
| 1 |
79377-44 |
Nozzle, Fluid, 1.4mm |
| 2 |
79906-00 |
Assembly, Barrel, Vector Solo |
| 3 |
79907-00 |
Cascade Assembly |
| 4 |
79832-00 |
Gasket, Barrel |
| 5 |
79881-00 |
Gasket, Exhaust, Wrap-Around |
| 6 |
79374-65 |
Air Cap (Standard) |
| 7 |
79724-00 |
Nut, Retaining, Air Nozzle |
| 8 |
LSOR0005-17 |
O-ring, PTFE encapsulated |
| 9 |
79385-00 |
Nut, Connector, Hose |
| 10 |
EMF-202-05 |
Ferrule, Back 3/8” Tube |
| 11 |
EMF-203-05 |
Ferrule, Front 3/8” Tube |
| 12 |
79878-12 |
Tube, Fluid Inlet, 3.2mm ID (.125”) |
|
79878-13 |
Tube, Fluid Inlet, 3.4mm ID (.250”) |
|
79878-01 |
Tube, Fluid Inlet, 2.4mm ID (.093”) |
| 13 |
79816-00 |
Assembly, Rear Cover |
| 14 |
79798-03 |
SHCS, M5 x 30” |
| 15 |
79799-01 |
Socket Head Cap Screw, M4 x 25mm |
| 16 |
79798-02 |
Socket Head Cap Screw, M5 x 80mm |
| 17 |
79787-00 |
Assembly, Trigger |
| 18 |
79454-00 |
Screw, Trigger Retention |
| 19 |
79768-00 |
Nut, Fluid Jam, Front |
| 20 |
79774-00 |
Spring, Air Valve Return |
| 21 |
79701-00 |
Hook, Moulded |
| 22 |
79799-02 |
SHCS, M4 x 30mm |
| 23 |
79727-10* |
Assembly, Air Hose, Solo |
| 24 |
79833-02 |
Assembly, Handle, Vector Solo (Includes Items 33,34,35,36,37,38 |
| 24A |
79833-03 |
Assembly, Handle Only |
| 25 |
79835-00 |
Assembly, Power Module (Includes Items 39,40,41,42 and 43 |
|
| |
| 26 |
79768-00 |
Nut, Fluid Jam, Spring Guide |
| 27 |
78636-00 |
Spring |
| 28 |
79789-00 |
Assembly, Rear Fluid Adjustment |
| 29 |
79781-00 |
Seal, Adjustment Bushing |
| 30 |
79837-00 |
Gasket, Handle to Power Module |
| 31 |
79809-00 |
Pressure Reducer, Atomizing Air, Vector Solo |
| 32 |
79911-00 |
Kit, Shaft Assembly, 2 Piece Needle |
| 33 |
79760-00 |
Seal, Air Valve |
| 34 |
79769-00 |
Seal, Air Cartridge |
| 35 |
79770-00 |
Cartridge, Air Valve |
| 36 |
79759-00 |
Assembly, Fan Air Adjust Valve |
| 37 |
79772-00 |
Assembly, Air Valve |
| 38 |
79847-00 |
Valve, Atom Adjust |
|
79847-01 |
Plug, Atom (Standard Installed on applicator) |
| 39 |
79755-00 |
Fluid Inlet |
| 40 |
79814-00 |
SHCS, M4 x 20mm |
| 41 |
79836-00 |
Gasket, Exhaust |
| 42 |
79805-00 |
Screw |
| 43 |
79843-00 |
Assembly, Exhaust Housing |
| 44 |
79861-00 |
Hose, Exhaust |
| 45 |
79793-00 |
Jam Nut Removal/Seal Tool |
| 46 |
79854-00 |
Wrench, Vector Solo |
| 47 |
79862-01 |
Hex Driver (2.5mm) |
| 48 |
79529-00-K5 |
Applicator Cover |
| 49 |
LSCH0009-00 |
Dielectric Grease |
| 50 |
79869-00 |
Stem, Male QD (Included with QD Ordered Models |
|
| |
|

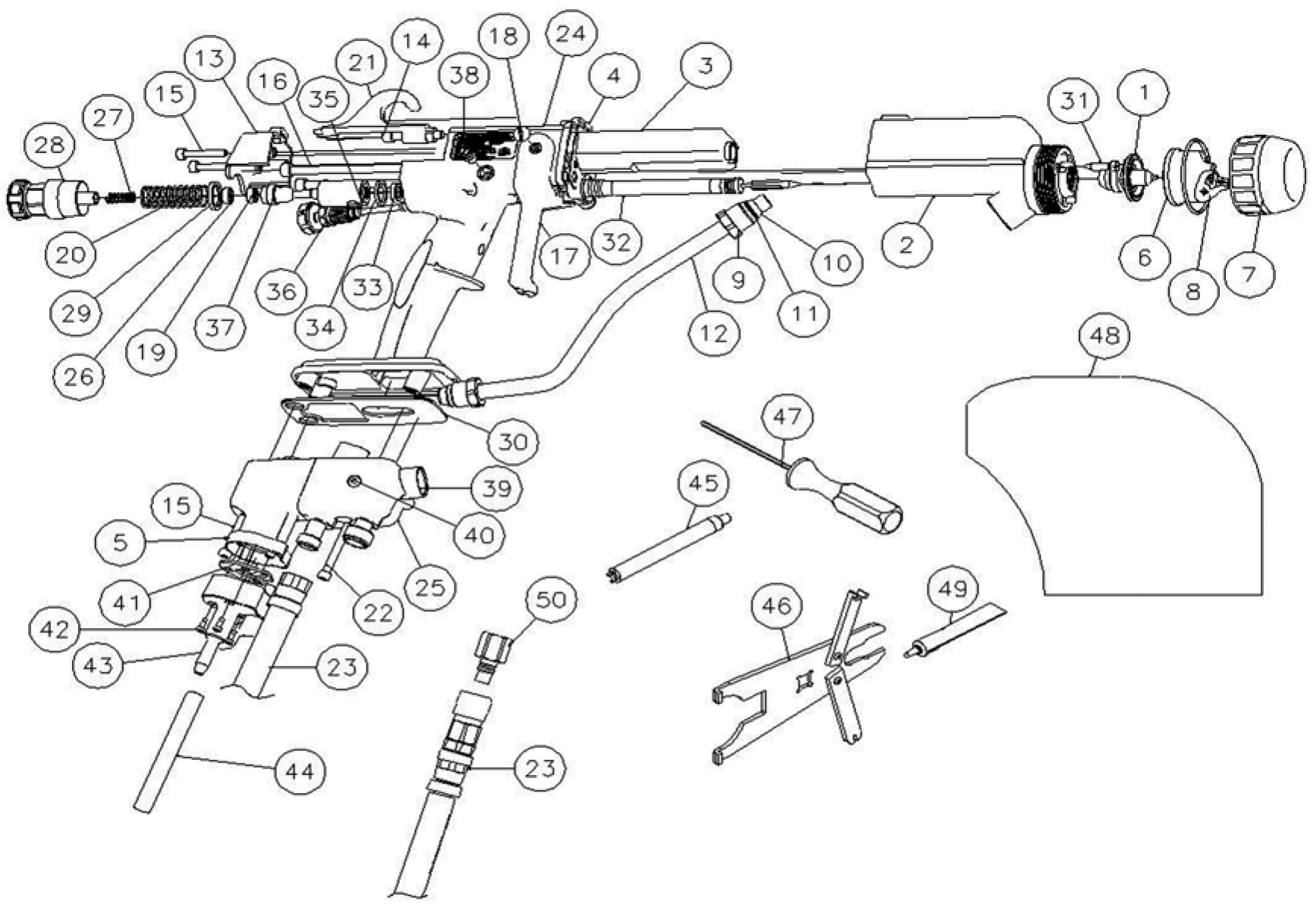

| Solo LP 85kV (solvent-based paint) - Pistolet elektrostatyczny ręczny |
| |
 |
| |
| Ref. |
Part no. |
Description |
| 1 |
79377-44 |
Nozzle, Fluid, 1.4mm |
| 2 |
79736-00 |
Assembly, Barrel, Vector Solo |
| 3 |
79600-00 |
Cascade Assembly |
| 4 |
79832-00 |
Gasket, Barrel |
| 5 |
79869-00 |
Stem, Male QD |
| 6 |
79374-65 |
Air Cap (Standard) |
| 7 |
79724-00 |
Nut, Retaining, Air Nozzle |
| 8 |
LSOR0005-17 |
O-ring, PTFE encapsulated |
| 9 |
79385-00 |
Nut, Connector, Hose |
| 10 |
EMF-202-05 |
Ferrule, Back 3/8” Tube |
| 11 |
EMF-203-05 |
Ferrule, Front 3/8” Tube |
12
|
79878-02 |
Tube, Fluid Inlet, 3.2mm ID (.125”) |
| 79878-03 |
Tube, Fluid Inlet, 3.4mm ID (.250”) |
| 79878-01 |
Tube, Fluid Inlet, 2.4mm ID (.093”) |
| 13 |
79816-00 |
Assembly, Rear Cover |
| 14 |
79798-03 |
SHCS, M5 x 30” |
| 15 |
79799-01 |
Socket Head Cap Screw, M4 x 25mm |
| 16 |
79798-02 |
Socket Head Cap Screw, M5 x 80mm |
| 17 |
79787-00 |
Assembly, Trigger |
| 18 |
79454-00 |
Screw, Trigger Retention |
| 19 |
79762-00 |
Nut, Fluid Jam, Front |
| 20 |
79774-00 |
Spring, Air Valve Return |
| 21 |
79701-00 |
Hook, Moulded |
| 22 |
79799-02 |
SHCS, M4 x 30mm |
| 23 |
79727-10* |
Assembly, Air Hose, Solo |
| 24 |
79833-02 |
Assembly, Handle, Vector Solo (Includes Items 33,34,35,36,37, and 38 |
| 24A |
79833-01 |
Assembly, Handle Only |
| 25 |
79835-00 |
Assembly, Power Module (Includes Items 39,40,41,42 and 43 |
|
| |
| Ref. |
Part no. |
Description |
| 26 |
79768-00 |
Nut, Fluid Jam, Spring Guide |
| 27 |
78636-00 |
Spring |
| 28 |
79789-00 |
Assembly, Rear Fluid Adjustment |
| 29 |
79781-00 |
Seal, Adjustment Bushing |
| 30 |
79837-00 |
Gasket, Handle to Power Module |
| 31 |
79809-00 |
Pressure Reducer, Atomizing Air, Vector Solo |
| 32 |
79853-00 |
Kit, Shaft Assembly, 2 Piece Needle |
| 33 |
79760-00 |
Seal, Air Valve |
| 34 |
79001-09 |
O-ring, Solvent Proof |
| 35 |
79770-00 |
Cartridge, Air Valve |
| 36 |
79759-00 |
Assembly, Fan Air Adjust Valve |
| 37 |
79772-00 |
Assembly, Air Valve |
| 38 |
79847-00 |
Valve, Atom Adjust |
|
79847-01 |
Plug, Atom (Standard Installed on applicator) |
| 39 |
79755-00 |
Fluid Inlet |
| 40 |
79814-00 |
SHCS, M4 x 20mm |
| 41 |
79836-00 |
Gasket, Exhaust |
| 42 |
79805-00 |
Screw |
| 43 |
79843-00 |
Assembly, Exhaust Housing |
| 44 |
79861-00 |
Hose, Exhaust |
| 45 |
79793-00 |
Jam Nut Removal/Seal Tool |
| 46 |
79854-00 |
Wrench, Vector Solo |
| 47 |
79862-01 |
Hex Driver (2.5mm) |
| 48 |
79529-00-K5 |
Applicator Cover |
| 49 |
LSCH0009-00 |
Dielectric Grease |
| 50 |
79881-00 |
Gasket, Exhaust, Wraparound |
| 51 |
80003-00-K10 |
Cover, Solo Power Module |
|
| |
|

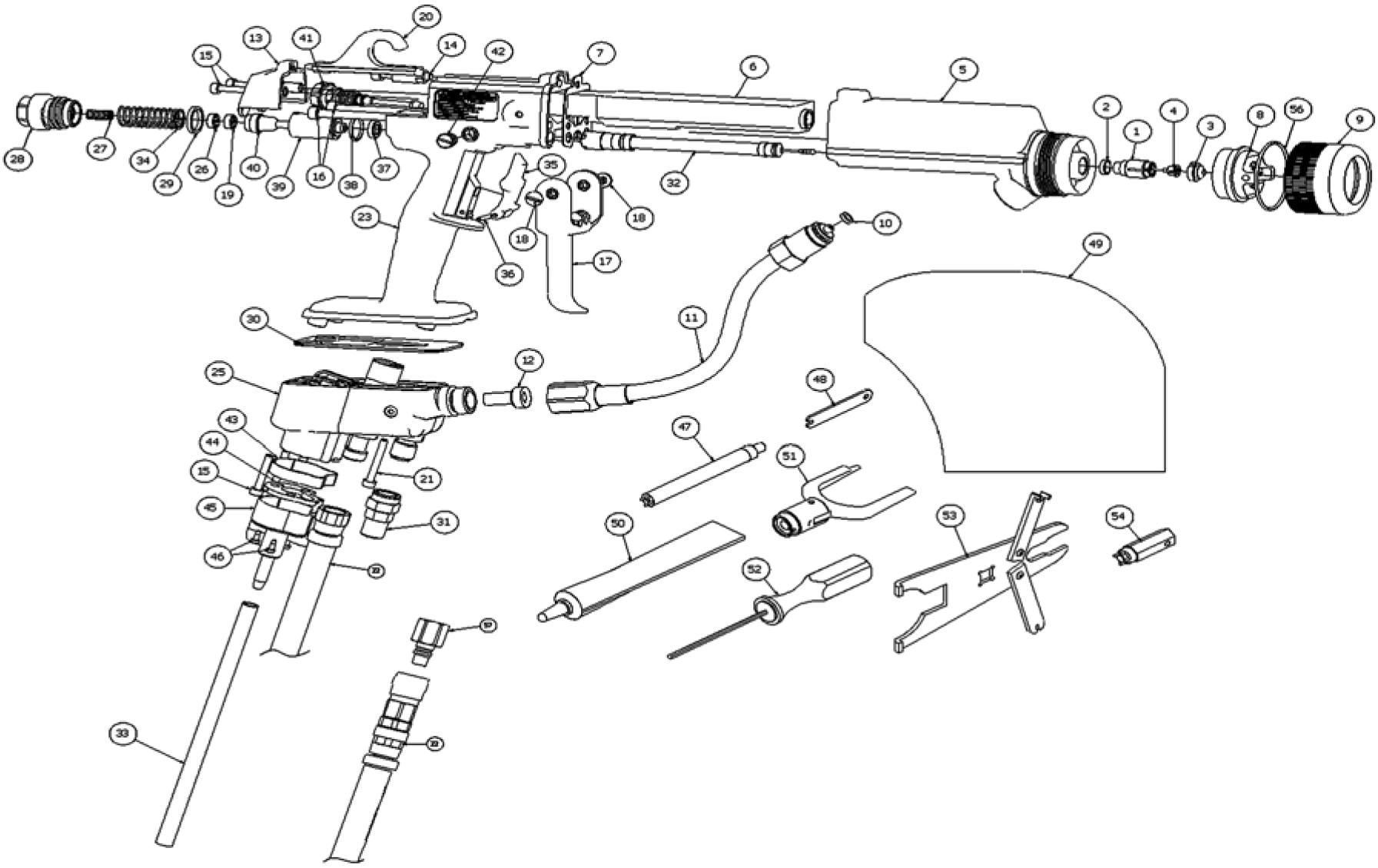

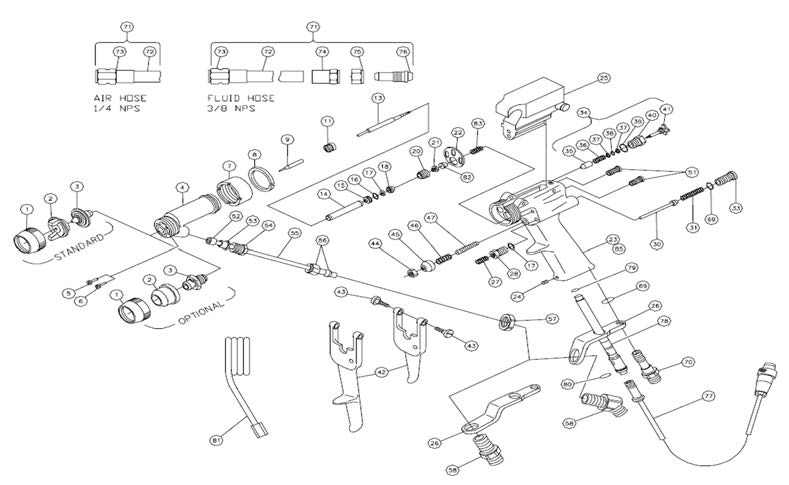

| Solo AA90 HP (solvent-based paint) - Pistolet elektrostatyczny ręczny |
| |
 |
| |
| Ref. |
Part no. |
Description |
| 1 |
79668-00 |
Assembly, Fluid Nozzle |
| 2 |
72375-03 |
Seal, PTFE |
| 3 |
79691-0811 |
Carbide Tip Assembly |
| 4 |
79692-00 |
Seal, No Pre-Orifice |
|
79692-00-K3 |
Kit of 3 (Optional, No Pre-Orifice) |
| 5 |
79689-00 |
Assembly, Vector Solo AA90 Barrel |
| 6 |
79600-00 |
Cascade Assembly |
| 7 |
79832-00 |
Gasket, Barrel |
| 8 |
79695-00 |
Assembly, Air Cap, Vector Solo AA90 |
| 9 |
79568-00 |
Ring, Retaining, Air Assist |
| 10 |
72375-02 |
Seal, PTFE |
| 11 |
79921-00 |
Assembly, Fluid Tube, Vector Solo AA90 |
| 12 |
7720-01-K3 |
Filter, Paint (Standard, .005" Spacing, 100 Mesh) |
|
7720-02-K3 |
Filter, Paint (Optional, .009" Spacing, 60 Mesh) |
| 13 |
79816-00 |
Assembly, Rear Cover |
| 14 |
79798-03 |
Socket Head Cap Screw, M5 X 30 |
| 15 |
79799-01 |
Socket Head Cap Screw, M4 X 25 |
| 16 |
79798-02 |
Socket Head Cap Screw, M5 X 80 |
| 17 |
79694-00 |
Trigger, Modified, Vector Solo AA90 |
| 18 |
79454-00 |
Screw, Trigger Retention |
| 19 |
79762-00 |
Nut, Fluid Jam |
| 20 |
79701-00 |
Hook, Molded |
| 21 |
79799-02 |
Socket Head Cap Screw, 4mm X 30mm Lg. |
| 22 |
79727-10 |
Assembly, Air Hose 10m2 |
| 23 |
79833-04 |
Assembly, Handle Vector Solo AA90 (Includes Items 34, 35, 36, 37, 38, 39, 40, and 41) |
| 24 |
79835-00 |
Assembly, Handle Only |
| 25 |
79835-01 |
Assembly, Power Module (Includes Items 42, 43, 44, and 45) |
| 26 |
79666-00 |
Nut, Jam |
| 27 |
78824-00 |
Spring |
| 28 |
79673-00 |
Assembly, Air Valve Knob |
|
| |
| Ref. |
Part no. |
Description |
| 29 |
79781-00 |
Seal, Adjustment Bushing |
| 30 |
79837-00 |
Gasket, Power Module |
| 31 |
79920-00 |
Swivel, High Pressure, Vector Solo AA90 |
| 32 |
79688-00 |
Assembly, Needle Shaft, Vector Solo AA90 |
| 33 |
79861-00 |
Tubing, Clear Tygothane Polyurethane, 1/4" ID X 3/8" OD |
| 34 |
79774-00 |
Spring, Air Valve Return |
| 35 |
79662-00 |
Trigger Lock |
| 36 |
79602-00 |
Roll Pin |
| 37 |
79760-00 |
Seal, Air Valve |
| 38 |
79001-09 |
O-Ring, Solvent Proof |
| 39 |
79770-00 |
Cartridge, Air Valve |
| 40 |
79772-00 |
Assembly, Air Valve |
| 41 |
79759-00 |
Assembly, Fan Air Adjust Valve |
| 42 |
79847-00 |
Valve, Atom Adjust (Optional) |
|
79847-01 |
Plug, Atom (Standard installed in applicator) |
| 43 |
79881-00 |
Gasket, Exhaust, Wrap-Around |
| 44 |
79836-00 |
Gasket, Exhaust |
| 45 |
79843-00 |
Assembly, Exhaust Housing |
| 46 |
79805-00 |
Screw |
| 47 |
79793-00 |
Jam Nut Removal/Seal Install Tool |
| 48 |
74133-00 |
Wrench, Needle Shaft |
| 49 |
79529-00-K5 |
Applicator Cover |
| 50 |
LSCH0009-00 |
Dielectric Grease |
| 51 |
79642-00 |
Cap Removal Tool |
| 52 |
79862-01 |
Hex Driver (2.5mm, 3mm, and 4mm) Wrench |
| 53 |
79854-00 |
Packing Adjust, Barrel Removal, Nozzle Removal |
| 54 |
79676-00 |
Wrench, Nozzle Removal |
| 55 |
7994-36 |
Fluid Hose 3/16” ID- 11m* |
| 56 |
LSOR0005-17 |
O-Ring, PTFE Encapsulated |
| 57 |
79869-00 |
Stem, Male QD (Included With QD Ordered Models) |
|
| |
|

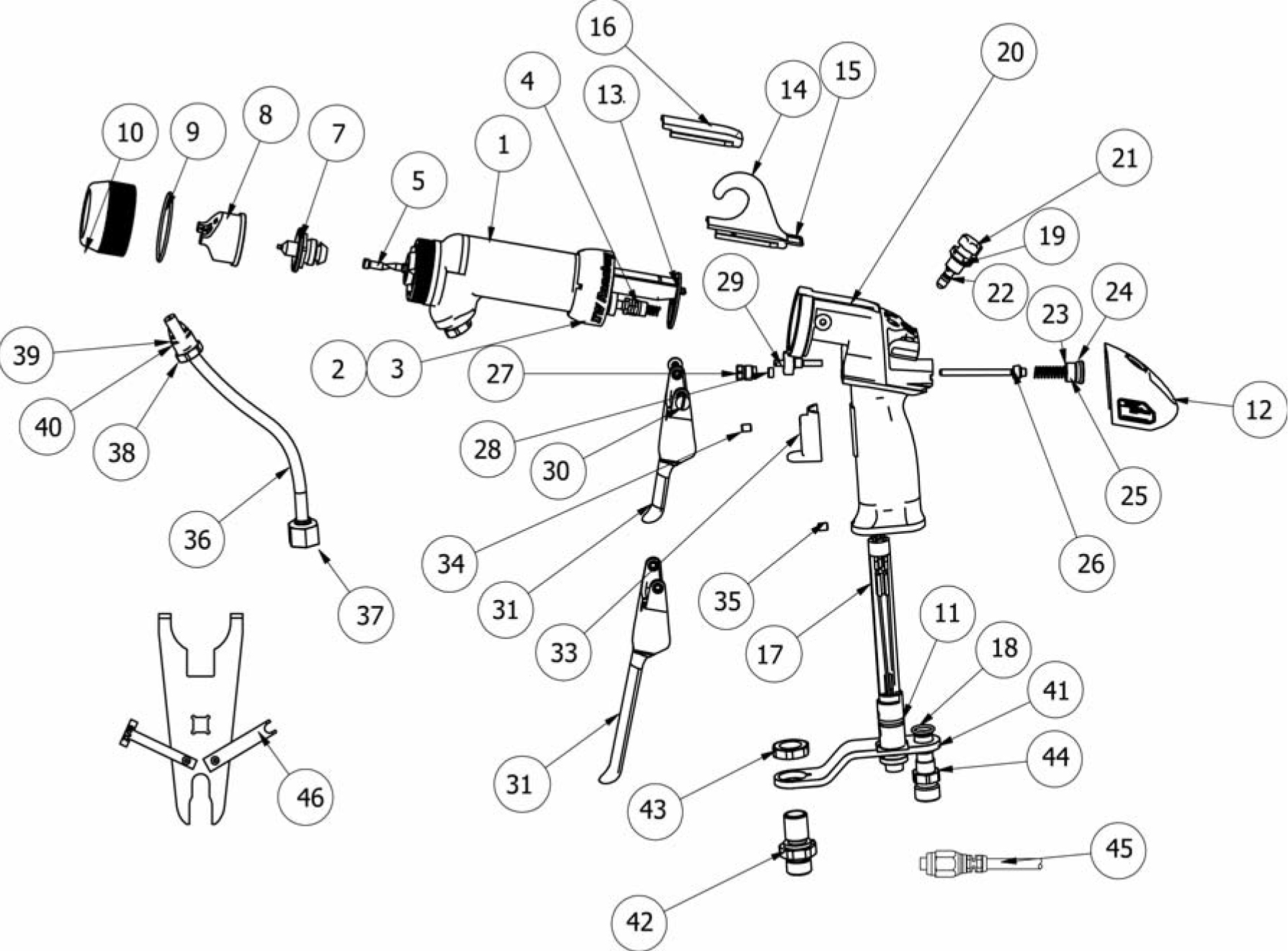

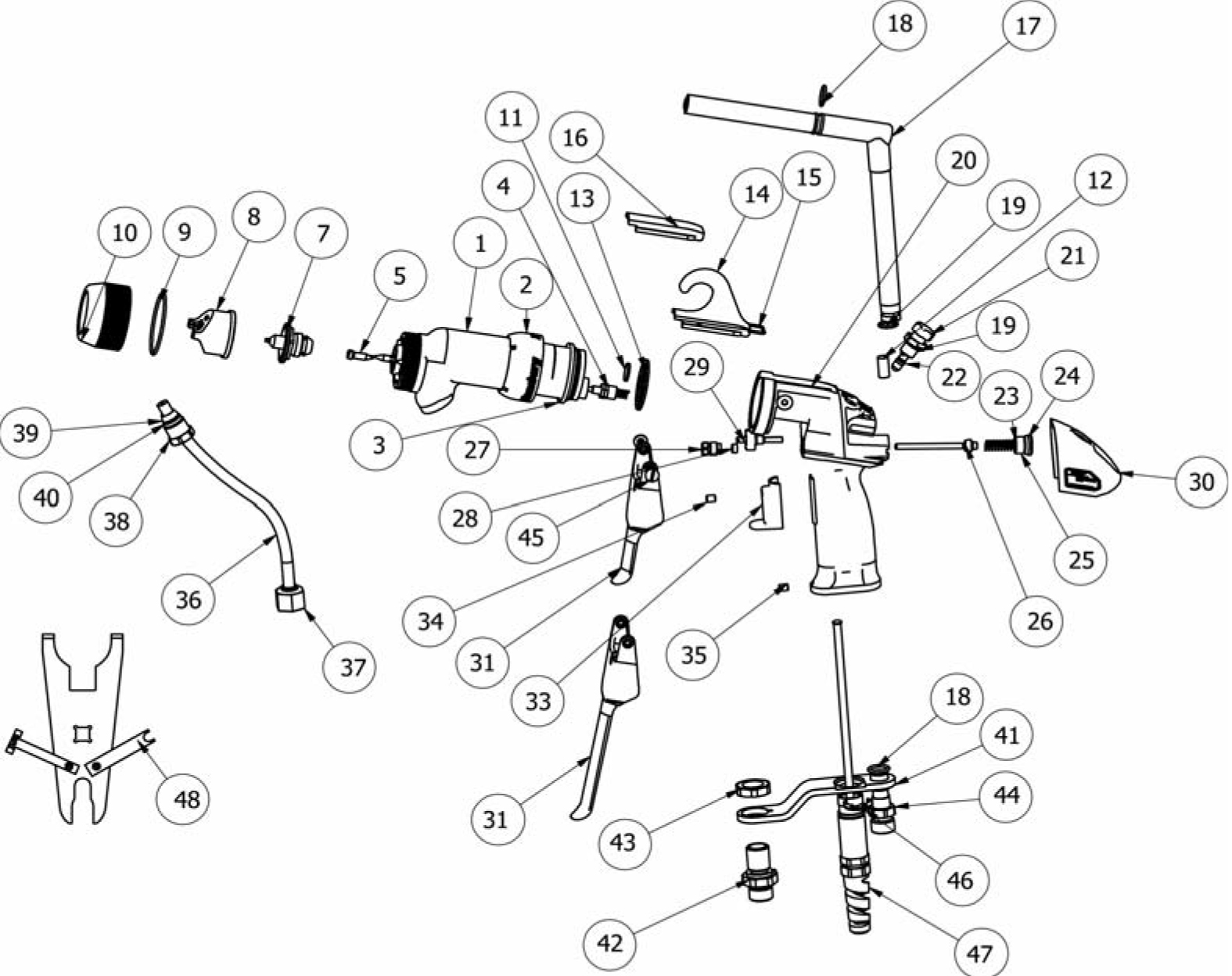

| Vector Cascade - Pistolet elektrostatyczny ręczny |
| |
 |
| |
| Ref. |
Part no. |
Description |
| 1 |
79468-00 |
R90 Barrel |
| 2 |
79469-00 |
R70 Barrel |
| 3 |
79373-00 |
Barrel retaining nut |
| 4 |
75326-00 |
Retaining ring |
|
79599-01 |
Needle shaft R90, 2K Packings |
|
79599-02 |
Needle shaft R70, 2K Packings |
| 5 |
74963-05 |
Restrictor, standard |
| 7 |
79377-45 |
Nozzle, standard, see table |
| 8 |
79374-65 |
Air cap, 65V Standard, see table |
| 9 |
LSOR0005-17 |
O-ring, PTFE black |
| 10 |
79379-00 |
Nozzle retaining ring |
| 11 |
79001-09 |
O-ring, solvent-resistant |
| 12 |
79471-01 |
Rear cover assembly |
| 13 |
79378-00 |
Barrel cover gasket |
| 14 |
79322-00 |
Hook |
| 15 |
79479-00 |
O-ring, solvent-resistant |
| 16 |
79322-11 |
Hook |
| 17 |
79460-03 |
Plug assembly |
| 18 |
79001-08 |
O-ring, solvent-resistant |
| 19 |
79001-07 |
O-ring, solvent-resistant |
| 20 |
79476-00 |
Gun handle |
| 21 |
79445-10 |
Fan air adjust assembly |
| 22 |
79001-16 |
O-ring, solvent-resistant |
| 23 |
17130-00 |
Return spring |
| 24 |
79001-31 |
O-ring, solvent-resistant |
| 25 |
79453-00 |
Air valve cap |
| 26 |
79310-00 |
Air valve |
|
| |
| Ref. |
Part no. |
Description |
| 27 |
78635-00 |
Retaining nut |
| 28 |
10051-05 |
Seal |
| 29 |
79560-00 |
Trigger stop |
| 30 |
79454-00 |
Trigger rention screw |
| 31 |
79325-02 |
2 finger trigger bracket |
| 32 |
79325-04 |
4 finger trigger bracket |
| 33 |
79324-00 |
Handle piece, finger form |
| 34 |
19603-08F |
Screw |
| 35 |
19603-10F |
Screw |
| 36 |
9704-16 |
Paint tube 3,2 mm ID |
| 37 |
3587-03 |
Union nut |
| 38 |
79385-00 |
Nut |
| 39 |
EMF-202-05 |
Sleeve before |
| 40 |
EMF-203-05 |
Sleeve back |
| 41 |
79439-00 |
Bracket 45° |
| 42 |
70442-00 |
Material inlet |
| 43 |
10553-05 |
Hex. Nut |
| 44 |
18847-01 |
Air inlet 1/4" |
|
18847-00 |
Air inlet 3/8" |
| 45* |
79338-10 |
Low-voltage cable 10m |
| 46 |
19749-00 |
Gun spanner |
| 47 |
72315-00 |
Conductive ferrule |
| 48 |
6241-06 |
Fluid fitting |
| 49 |
7787-03 |
Swivel fitting |
|
| |
|
| VECTOR Classic(solvent-based paint) - Pistolet elektrostatyczny ręczny |
| |
 |
| |
| Ref. |
Part no. |
Description |
| 1 |
79465-85 |
R90 Barrel |
|
79465-65 |
R70 Barrel |
| 2 |
79373-00 |
Retaining barrel nut |
| 3 |
75326-00 |
Retaining ring |
| 4 |
79599-01 |
Needle shaft R90, 2K Packings |
|
79599-02 |
Needle shaft R70, 2K Packings |
| 5 |
74963-05 |
Resistrictor |
| 7 |
79377-45** |
Nozzle see table |
| 8 |
79374-65** |
Air cap see table |
| 9 |
LSOR0005-17 |
O-ring, PTFE encapsulated |
| 10 |
79379-00 |
Nozzle retaining nut |
| 11 |
14061-05 |
Conductive sponge 17/32"x1/4" |
| 12 |
14061-08 |
Conductive sponge 5/16"x3/4" |
| 13 |
79378-00 |
Barrel cover gasket |
| 14 |
79322-00 |
Hook |
| 15 |
79479-00 |
O-ring |
| 16 |
79322-11 |
Hook |
| 17 |
70397-01 |
Resistor housing R70 |
|
70397-02 |
Resistor housing R90 |
| 18 |
79001-08 |
O-ring, solvent-resistant |
| 19 |
79001-07 |
O-ring, solvent-resistant |
| 20 |
79476-00 |
Gun handle |
| 21 |
79445-10 |
Fan air adjust assembly |
| 22 |
79001-16 |
O-ring, solvent-resistant |
| 23 |
17130-00 |
Return spring |
| 24 |
79001-31 |
O-ring, solvent-resistant |
| 25 |
79453-00 |
Air valve cap |
|
| |
| Ref. |
Part no. |
Description |
| 26 |
79310-00 |
Air valve |
| 27 |
78635-00 |
Retaining air valve nut |
| 28 |
10051-05 |
Spring loaded cup seal |
| 29 |
79560-00 |
Trigger stop |
| 30 |
79471-11 |
Rear applicator assembly cover |
| 31 |
79325-02 |
2 finger trigger bracket |
| 33 |
79324-00 |
Handle piece, finger form |
| 34 |
19603-8F |
Set screw |
| 35 |
19603-10F |
Set screw |
| 36 |
9704-16 |
Paint tube 3.2 mm ID |
| 37 |
3587-02 |
Nut and ferrule |
| 38 |
79385-00 |
Hose connector nut |
| 39 |
EMF-202-05 |
Back ferrule |
| 40 |
EMF-203-05 |
Front ferrle |
| 41 |
79439-00 |
Bracket 45° |
| 42 |
70442-00 |
Material inlet |
| 43 |
10553-06 |
Hex. nut |
| 44 |
18847-01 |
Air inlet 1/4" |
|
18847-00 |
Air inlet 3/8" |
| 45 |
79454-00 |
Trigger retention screw |
| 46 |
79521-00 |
HIgh voltage cable retaining clip |
| 47* |
79519-10 |
High-voltage 10m cable for R70 |
|
79518-10 |
High-voltage 10m cable for R90 |
| 48 |
19749-00 |
Gun spanner |
|
| |
|

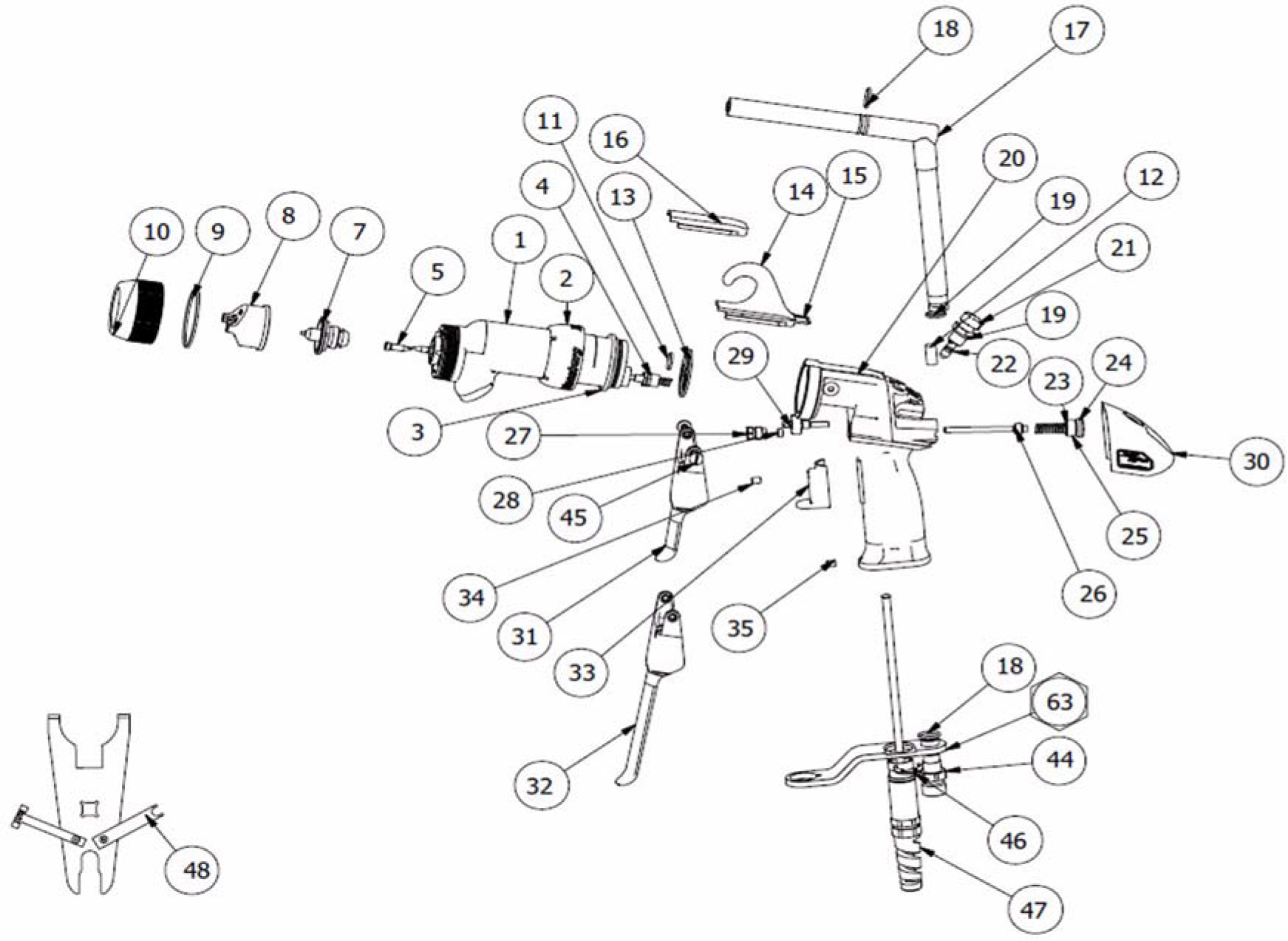

| VECTOR Classic(water-based paint) - Pistolet elektrostatyczny ręczny |
| |
 |
| |
| ref. |
Part no. |
Description |
| 1 |
79465-85 |
R90 barrel |
|
79465-65 |
R70 barrel |
| 2 |
79373-00 |
Retaining nut |
| 3 |
75326-00 |
Retaining ring |
| 4 |
78628-11 |
Needle shaft R90 |
|
78628-12 |
Needle shaft R70 |
| 5 |
74963-05 |
Restrictor |
| 6 |
79001-09 |
O-ring, solvent-resistant |
| 7 |
79377-45 |
Nozzle, standard see table |
| 8 |
79374-65 |
Air cap 65V standard, see table |
| 9 |
LSOR0005-17 |
O-ring, PTFE black |
| 10 |
79379-00 |
Nozzle retaining ring |
| 11 |
14061-05 |
Conductive sponge 17/32"x1/4" |
| 12 |
14061-08 |
Conductive sponge 5/16"x3/4" |
| 13 |
79378-00 |
Gasket |
| 14 |
79322-00 |
Hook |
| 15 |
79479-00 |
O-ring |
| 16 |
79322-11 |
Hook |
| 17 |
70397-01 |
Resistor housing R70 |
|
70397-02 |
Resistor housing R90 |
| 18 |
79001-08 |
O-ring, solvent resistant |
| 19 |
79001-07 |
O-ring, solvent resistant |
| 20 |
79476-00 |
Gun handle |
| 21 |
79445-10 |
Fan air adjust |
| 22 |
79001-16 |
O-ring, solvent resistant |
| 23 |
17130-00 |
Return spring |
| 24 |
79001-31 |
O-ring, solvent resistant |
| 25 |
79453-00 |
Retaining cap |
|
| |
| ref. |
Part no. |
Description |
| 26 |
79310-00 |
Air valve |
| 27 |
78635-00 |
Retaining nut |
| 28 |
10051-05 |
Cup seal |
| 29 |
79560-00 |
Trigger stop |
| 30 |
79471-11 |
Cover |
| 31 |
79325-02 |
2 finger trigger bracket |
| 32 |
79325-04 |
4 finger trigger bracket |
| 33 |
79324-00 |
Finger moulded shelf |
| 34 |
19603-8F |
Set screw |
| 35 |
19603-10F |
Set screw |
| 41 |
70399-00 |
Bracket |
| 42 |
70398-00 |
Material inlet |
| 43 |
10553-06 |
Hex. nut |
| 44 |
18847-01 |
Air inlet 1/4" |
|
18847-00 |
Air inlet 3/8" |
| 45 |
79454-00 |
Trigger retention screw |
| 46 |
79521-00 |
Retaining clip, high voltage cable |
| 47* |
79518-10 |
High-voltage cable, 10m for R90 |
|
79519-10 |
High-voltage cable, 10m for R70 |
| 48 |
19749-00 |
Gun spanner |
|
| |
|

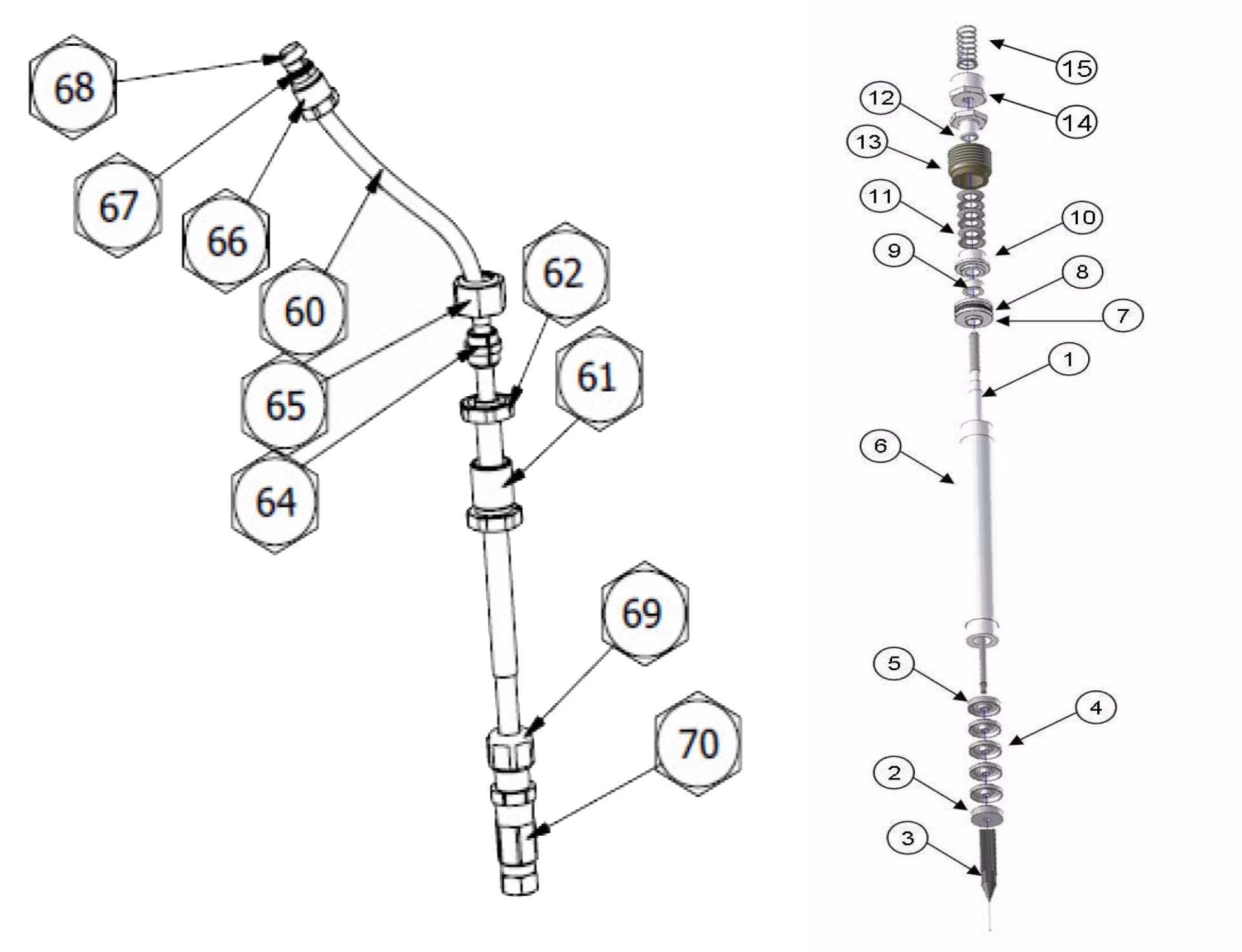

VECTOR Classic(solvent-based paint and water-based paint) - Pistolet elektrostatyczny ręczny
|
| |
.jpg) |
| |
| ref. |
Part no. |
Description |
| 60 |
79525-10* |
Fluid hose assembly 1/4” ID, 10m |
|
79524-10* |
Fluid hose assembly, 3/16” ID, 10m |
| 60a |
74179-XX |
Bulk tube, fluid, 1/4” ID |
|
72307-XX |
Bulk tube, fluid, 3/16” ID |
| 61 |
72310-00 |
Bulk head connector |
| 62 |
10553-05 |
Hex nut |
| 63 |
79438-00 |
Bracket, support offset |
|
79438-01 |
Bracket, support offset (stainless steel) |
| 64 |
72315-00 |
Connective ferrule |
| 65 |
3587-02 |
Nut 3/8” |
| 66 |
79385-00 |
Hose connector nut |
| 67 |
EMF-203-05 |
Ferrule tube, front 3/8” |
| 68 |
EMF-202-05 |
Ferrule tube, back 3/8” |
| 69 |
6241-06 |
Fluid fitting |
| 70 |
7787-03 |
Swivel fitting |
|
| |
| ref. |
Part no. |
Description |
| 1 |
78627-04 |
Shaft Assembly, 2-Piece Needle, R90, 2k Packings |
|
78627-05 |
Shaft Assembly, 2-Piece Needle, R70, 2k Packings |
| 2 |
74653-00 |
Adapter, Male Chevron |
| 3 |
70430-01 |
Electrode, High Wear |
| 4 |
14323-00-K4 |
Seal, Chevron |
| 5 |
18821-00 |
Adapter, Female Chevron |
| 6 |
18842-01 |
Packing R90 |
|
18842-02 |
Packing R70 |
| 7 |
78629-00 |
Retaining ring, needle seal |
| 8 |
79001-06 |
O-ring, solvent-resistant |
| 9 |
10051-05 |
Seal |
| 10 |
78630-00 |
Seal |
| 11 |
17390-04 |
Washer, Beville Spring |
| 12 |
78632-00 |
Cover nut |
| 13 |
78631-00 |
Nut, Packing |
| 14 |
78633-00 |
Spring holder |
| 15 |
78824-00 |
Spring |
|
| |
|

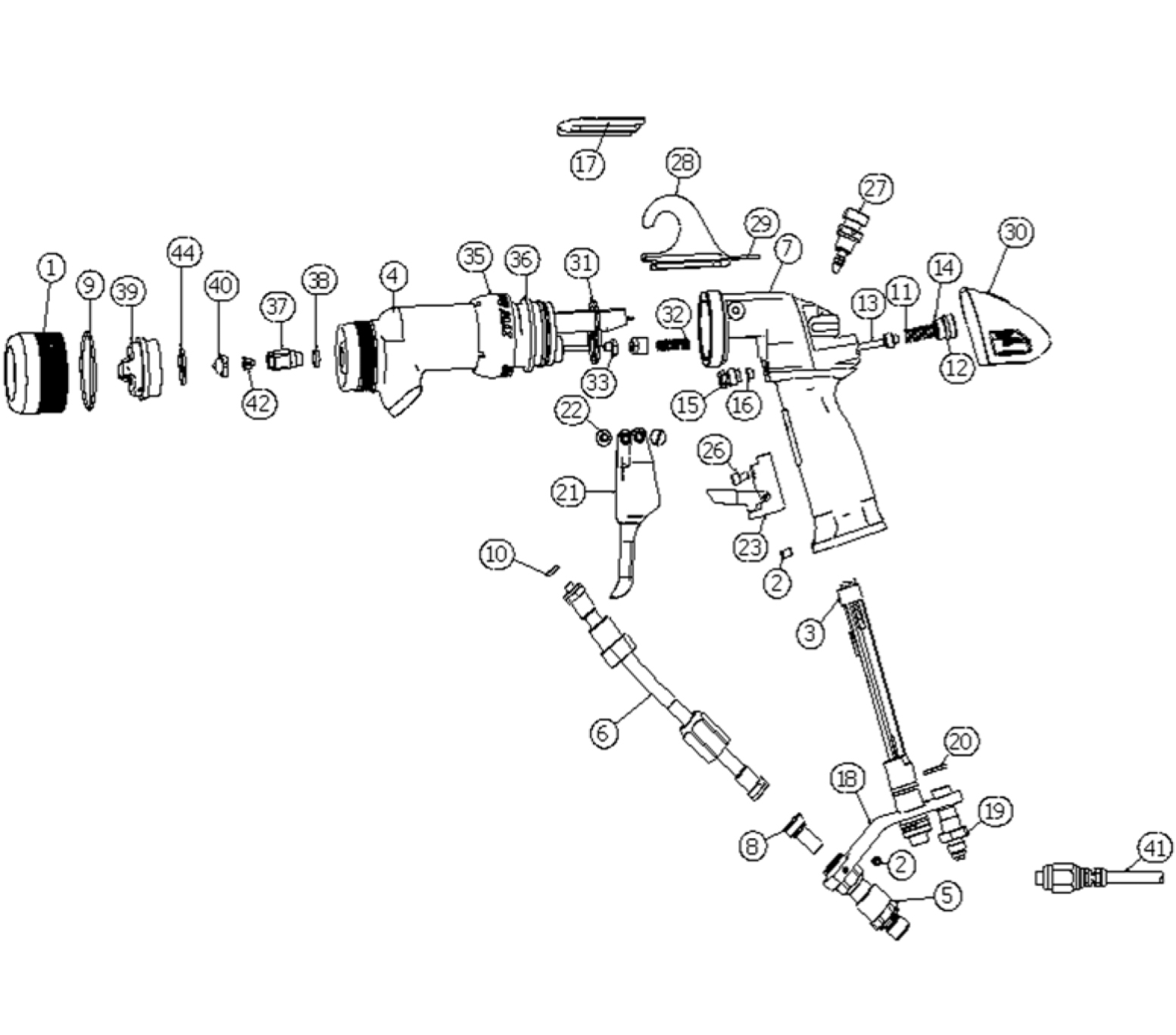

| VECTOR AA90 Cascade - Pistolet elektrostatyczny ręczny |
| |
 |
| |
| ref. |
Part no. |
Description |
| 1 |
79568-00 |
Retaining ring, air assist |
| 2 |
19603-08F |
Set screw, cup point (2 x required) |
| 3 |
79460-04 |
Assembly plug, low voltage |
| 4 |
79588-00 |
Barrel assembly AA90 with needle, retaining ring |
|
79586-00 |
Barrel assembly AA90 |
| 5 |
11842-28 |
Swivel, high pressure |
| 6 |
77096-00 |
Fluid tube assembly |
| 7 |
79476-01 |
Handle assembly |
| 8 |
7720-01-K3 |
Filter, paint, .005 web spacing, 100 mesh (fine) |
|
7720-02-K3 |
Filter, paint, .009 web spacing, 60 mesh (coarse) |
| 9 |
LSOR0005-17 |
O-ring, PTFE encapsulated |
| 10 |
72375-02 |
Seal, PTFE |
| 11 |
17130-00 |
Return spring |
| 12 |
79001-31 |
O-ring, solventproof |
| 13 |
79310-00 |
Rod assembly, dual stage air valve |
| 14 |
79453-00 |
Retaining cap, air valve |
| 15 |
78635-00 |
Retaining nut, air valve |
| 16 |
10051-05 |
Spring loaded cup seal |
| 17 |
79322-11 |
Hook |
| 18 |
79570-00 |
Bracket, support, offset |
| 19 |
11842-19 |
Air inlet fitting |
| 20 |
79001-08 |
O-ring, solvent proof |
| 21 |
79325-02 |
Trigger, molded, 2-finger |
| 22 |
79454-00 |
Trigger rention screw (2 required) |
| 23 |
79638-00 |
Trigger Lock Assembly |
|
| |
| ref. |
Part no. |
Description |
| 26 |
8301-08C |
SHCS |
| 27 |
79566-10 |
Fan click adjust assembly |
| 28 |
79322-00 |
Hook, moulded |
| 29 |
79479-00 |
O-ring, cord |
| 30 |
79471-01 |
Rear cover assembly |
| 31 |
79378-00 |
Barrel cover gasket |
| 32 |
78824-00 |
Spring |
| 33 |
78632-00 |
Locking nut, needle shaft |
| 34 |
78633-00 |
Spring retainer, needle shaft |
| 35 |
79373-00 |
Retaing ring nut |
| 36 |
75326-00 |
Ring, retaining |
| 37 |
79668-00 |
Valve seat body assembly |
| 38 |
72375-03 |
Seal, PTFE |
| 39 |
79695-00 |
Air cap, air assist |
| 40 |
79691-XX |
Carbide Tip Assemblies, see table |
| 41* |
79338-10 |
Cable, Low Voltage, 10m* |
| 42 |
79634-00-K3 |
Conversion Kit for M90 AAA Tips |
| 44 |
LSOR0005-11 |
O-ring PTFE encapsulated (included in ref. 39 |
|
| |
|

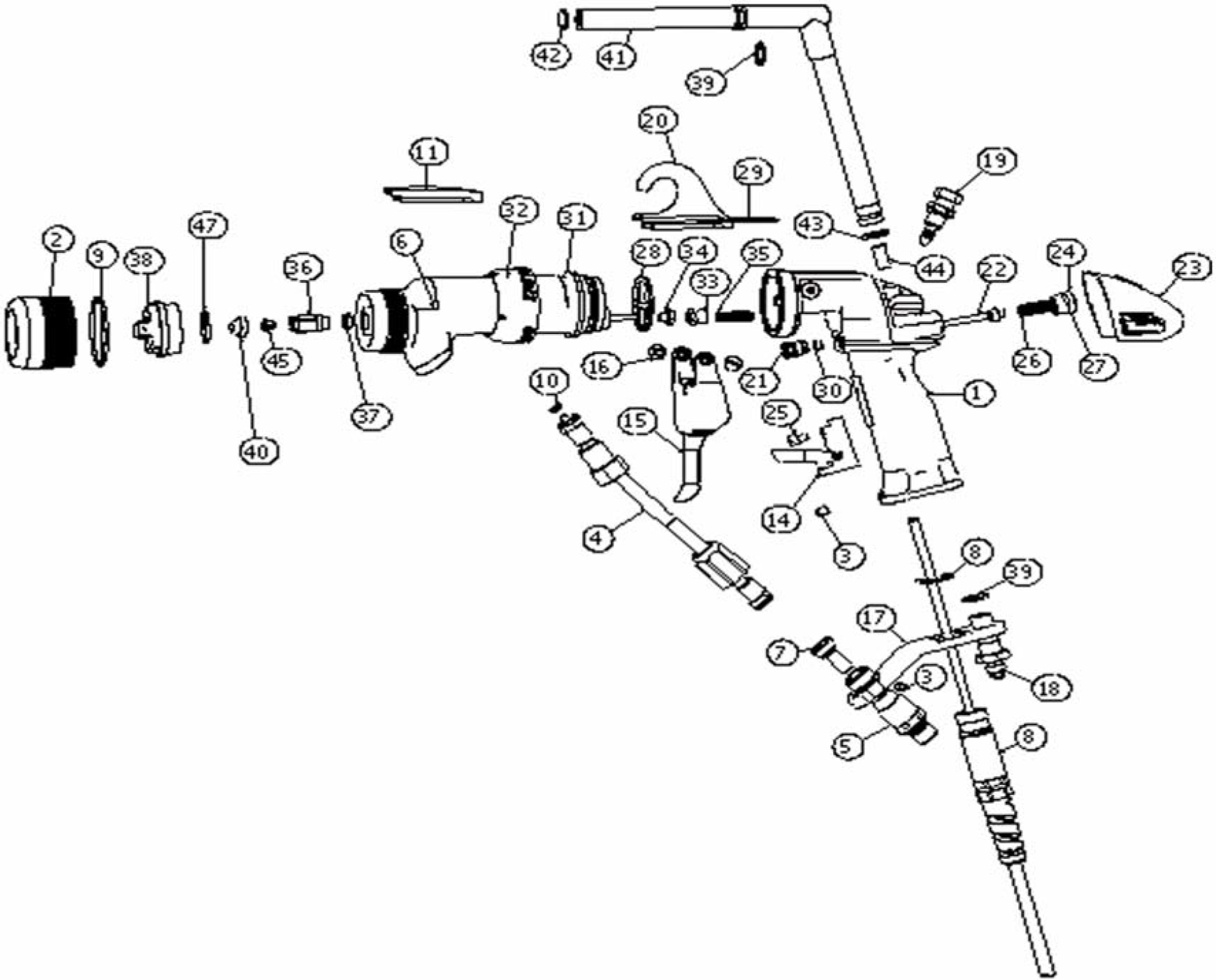

| Vector AA90 Classic - Pistolet elektrostatyczny ręczny |
| |
 |
| |
| ref. |
Part no. |
Description |
| 1 |
79476-01 |
Handle assembly |
| 2 |
79568-00 |
Retaining ring, air assist |
| 3 |
19603-8F |
Set screw, cup point |
| 4 |
77096-00 |
Fluid tube assembly |
| 5 |
76105-00 |
High pressure swivele |
| 6 |
79584-00 |
Assembly, barrel, AA90 Classic with needle, retaining ring & resistor tube |
|
79583-00 |
Barrel assembly |
| 7 |
7720-01-K3 |
Filter paint, .005 web spacing, 100 Mesh (Fine) |
|
7720-02-K3 |
Filter, paint, .009 web spacing, 60 mesh (coarse) |
| 8 |
79519-10 |
Cable assembly, high voltage, 10m* |
| 9 |
LSOR0005-17 |
O-ring, PTFE encapsulated |
| 10 |
72375-02 |
Seal, PTFE |
| 11 |
79322-11 |
Hook |
| 14 |
79638-00 |
Trigger Lock Assembly |
| 15 |
79325-02 |
2 finger trigger bracket |
| 16 |
79454-00 |
Trigger rention screw (2 required) |
| 17 |
79570-00 |
Bracket, support, offset |
| 18 |
74189-00 |
Air inlet fitting |
| 19 |
79566-10 |
Fan click adjust |
| 20 |
79322-00 |
Hook |
| 21 |
78635-00 |
Air valve retaining ring |
| 22 |
79310-00 |
Rod assembly, dual stage air valve |
| 23 |
79471-11 |
Rear housing assembly |
| 24 |
79453-00 |
Air cap retaining ring |
| 25 |
8301-08C |
SHCS |
| 26 |
17130-00 |
Return spring |
|
| |
| ref. |
Part no. |
Description |
| 27 |
79001-31 |
O-ring, solvent proof |
| 28 |
79378-00 |
Gasket, |
| 29 |
79479-00 |
O-ring, cord |
| 30 |
10051-05 |
Spring loaded cup seal |
| 31 |
75326-00 |
Retaining ring |
| 32 |
79373-00 |
Retaining barrel nut |
| 33 |
78633-00 |
Spring retainer, needle shaft |
| 34 |
78623-00 |
Locking nut, needle shaft |
| 35 |
78824-00 |
Spring |
| 36 |
79668-00 |
Valve seat assembly |
| 37 |
72375-03 |
Seal, PTFE |
| 38 |
79573-00 |
Air cap assembly |
| 39 |
79001-08 |
O-ring, solvent proof |
| 40 |
79691-XX |
Carbide Tip Assemblies, see table |
| 41 |
70397-02 |
Resistor housing, potted |
| 42 |
14061-05 |
Conductive sponge |
| 43 |
79001-07 |
O-ring, solvent proof |
| 44 |
14061-08 |
Conductive sponge |
| 45 |
79634-00-K3 |
Carbide tip seal, pack of 3 |
| 47 |
LSOR0005-11 |
O-ring, PTFE encapsulated |
| 48 |
79642-00 |
Cap removal tool |
|
| |
|
| NO.2 - Pistolet elektrostatyczny ręczny |
| |
 |
| |
| ref. |
Part no. |
Description |
| 1 |
11491-00 |
Spray bell 2 3/4˝ |
|
11488-00 |
Spray bell 4˝ |
|
11492-00 |
Spray bell 6˝ |
| |
11491-00 |
Bell ring 2 3/4˝ |
|
4627-00 |
Bell ring 4˝ |
|
4703-00 |
Bell ring 6˝ |
| |
4628-00 |
Core piece 4˝ |
|
4704-00 |
Core piece 6˝ |
| 2 |
8488-12F |
Threaded pin |
| 3 |
6714-00 |
Ring for drive shaft |
| 4 |
6713-00 |
Retaining ring for drive shaft |
| 5 |
7554-20 |
O-ring |
| 6 |
6710-00 |
Seal |
| 7 |
6711-00 |
Seal |
| 8 |
ZZ-1604-D |
O-ring |
| 9 |
7554-08 |
O-ring |
| 10 |
7225-00 |
Drive shaft |
| 10a |
7226L00 |
Drive shaft compl. |
| 11 |
4175-01 |
Resistance 10 MW |
| 12 |
14003-00 |
Spring |
| 13 |
6335-00 |
Feed tube 2 3/4˝ |
|
3700-00 |
Feed tube 4˝ |
|
4076-00 |
Feed tube 6˝ |
| 14 |
7554-05 |
O-ring |
| 15 |
10972-00 |
Gun assembly |
| 16 |
3968-00 |
Seal |
|
| |
| ref. |
Part no. |
Description |
| 17 |
8491-00 |
Spring |
| 18 |
75757-00 |
Air motor adapter |
| 20 |
4359-01 |
Pin for spring |
| 21 |
11847-00 |
Air motor |
| 22 |
10962-00 |
Spacer |
| 23 |
9157-24F |
Screw |
| 24 |
20988-25 |
H.V. cable compl., 7.5 m* |
|
20988-50 |
H.V. cable compl., 15 m* |
| 25 |
10975-00 |
Air valve |
| 26 |
8301-16C |
Screw |
| 27 |
8301-12C |
Screw |
| 28 |
8454-06C |
Screw |
| 29 |
JGX-25 |
Spring |
| 30 |
7747-16C |
Screw |
| 31 |
7486-06 |
Washer |
| 32 |
2803-00 |
Sleeve for paint tube |
| 33 |
LUX-32 |
O-ring |
| 34 |
2842-01 |
Resistance 525 MW |
| 35 |
7554-06 |
O-ring |
| 36 |
3959-00 |
Resistance seal |
| 37 |
3695-00-K3 |
Sliding contact |
| 39 |
3655-00 |
Valve compl. |
| 40 |
5008-00 |
Compression washer |
|
| |
| ref. |
Part no. |
Description |
| 41 |
3658-00 |
Spring holder |
| 42 |
3441-00 |
Knurled nut |
| 43 |
2846-00 |
Spring |
| 44 |
3657-00 |
Valve needle |
| 45 |
3803-01 |
Eyelet |
| 46 |
3688-01 |
Lock washer |
| 47 |
3659-00 |
Spring housing |
| 48 |
2845-00 |
Packing |
| 49 |
3649-00 |
Trigger |
| 50 |
7234-00 |
Handle |
| 51 |
2594-08 |
Dowel pin |
| 52 |
7747-20C |
Screw |
| 53 |
3978-00 |
Spacer sleeve |
| 54 |
3979-00 |
Trigger lock |
| 55 |
3977-00 |
Torsion spring |
| 56 |
3654-00 |
Valve needle seat |
| 57 |
6803-01 |
Bushing |
| 58 |
3653-00 |
Sleeve |
| 59 |
6803-02 |
Bushing |
| 60 |
7135-00 |
Screw connection |
| 61 |
17356-00 |
Paint feed |
| 85 |
8488-08C |
Threaded pin |
| 90 |
6126-00 |
Spring for bell |
| 91 |
6204-00 |
Resistance tube |
| 92 |
7554-28 |
O-ring for resistance tube |
|
| |
| Akcesoria NO.2 |
| |
| 8340L25 |
Paint hose compl. 1/4˝ ID - 7.5 m |
| 8340L36 |
Paint hose compl. 1/4˝ ID - 11 m |
| 8340L50 |
Paint hose compl. 1/4˝ ID - 15 m |
| 8340L75 |
Paint hose compl. 1/4˝ ID - 25 m |
| 6886L25 |
Air hose compl. 1/4˝ ID - 7.5 m |
| 6886L36 |
Air hose compl. 3/16˝ ID - 11 m |
| 6886L50 |
Air hose compl. 3/16˝ ID - 15 m |
| 6886L75 |
Air hose compl. 3/16˝ ID - 25 m |
| 11385L00 |
Spare parts kit |
| 11775-05 |
Textile protective hose (yard ware) |
| 59972-00 |
Dielectric grease (100 g) |
| 77070-34-0 |
High-voltage generator |
| 12536-13 |
Wall bracket for high-voltage generator |
| 72558-02 |
Protective sleeve for gun |
|
| |
|
| Estaquick - Pistolet elektrostatyczny ręczny |
| |
| ref. |
Part no. |
Description |
| 1 |
AEMD-2195 |
Head |
| 2 |
AEMD-2217 |
Head body |
| 3 |
AEMD-2242 |
Rear plate |
| 4 |
AEMD-2216 |
Head joint |
| 5 |
AEMD-2218 |
Rear plate joint |
| 6 |
AEMD-2244 |
Locking device |
| 7 |
AEMD-2130 |
HV contact finger |
| 8 |
AGMD-405-1 |
Needle packing |
| 9 |
AEMD-2240 |
Contact |
| 10 |
AEMD-2241 |
Contact lock |
| 11 |
AEMD-2033 |
Deflector ring |
| 13 |
AEMD-2915-G |
Nozzle 0.8mm |
|
AEMD-2915-FX |
Nozzle 1.1 mm |
|
AEMD-2915-FF |
Nozzle 1.4 mm |
|
AEMD-2915-FW |
Nozzle 1.6mm |
| 14 |
AEMD-800 |
Air cap |
| 15 |
AEMD-2368 |
Retaining ring |
| 16 |
AGMD-243-1 |
Piston pin seat |
| 17 |
AEMD-2420 |
Needle |
| |
70430-01 |
Electrode + resistance |
| 18 |
AEMD-2219 |
Spring base |
| 19 |
AGMD-110 |
Compression spring |
| 20 |
AGMD-111 |
Compression spring |
| 21 |
AGMD-116 |
Centring pin |
| 22 |
AGMD-115 |
Spring |
| 23 |
AEMD-2131 |
Cap screw |
| 24 |
AGMD-121 |
O-ring |
| 25 |
AGMD-93-K5 |
O-ring (Pack of 5) |
| 26 |
AGMD-65-1 |
Nozzle seal |
|
| Akcesoria Estaquick |
| |
| AEMD-2941 |
Pencil jet nozzle |
| AEMD-2951 |
Pencil jet nozzle |
| AEMD-850 |
Air cap for pencil jet (mounted instead of Pos. 14,13,26,12) |
| AEMD-101 |
Nozzle wrench for AEMD-2915-... |
| AEMD-4500-1 |
Machine adapter |
| AEMD-4200 |
High-voltage cable |
| 77070-33-1 |
High-voltage transformer |
|
| |
|

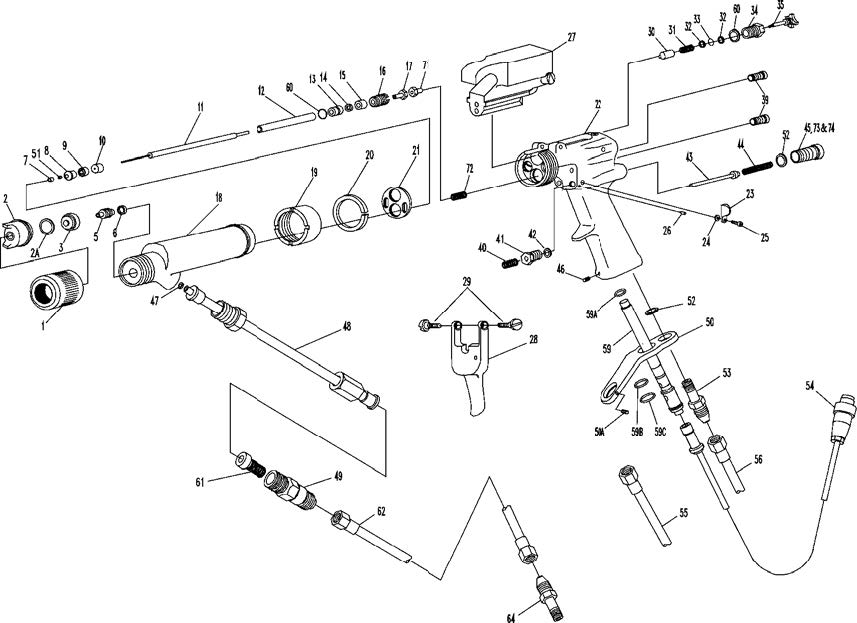

| M90 Cascade - Pistolet elektrostatyczny ręczny |
| |
 |
| |
| Ref. |
Part no. |
Description |
| 1 |
77095-00 |
Retaining ring |
| 2 |
78140-00 |
Air cap |
| 2A |
LSOR0005-11 |
O-ring, solvent-resistant |
| 3 |
77080-xxxx |
Fluid nozzle |
| 5 |
75442-00 |
Valve seat |
| 6 |
72375-03 |
Seal |
| 7 |
73350-00 |
Valve ball |
| 8 |
73344-00 |
Spreader seal |
| 9 |
73345-00 |
Seal U-cup |
| 10 |
73346-00 |
Pusher seal |
| 11 |
73352-00 |
Needle shaft |
| 12 |
72378-01 |
Tube packing |
| 13 |
73347-00 |
Rear seal container |
| 14 |
74330-00 |
U-cup seal |
| 15 |
73348-00 |
Rear seal retainer |
| 16 |
73354-00 |
Packing screw |
| 17 |
78822-00 |
Adjusting nut |
| 18 |
77082-00 |
Gun assembly with cascade |
| 19 |
75324-00 |
Union nut |
| 20 |
75327-00 |
Retaining ring |
| 21 |
LREM0012-00 |
Gasket |
| 22 |
78641-00 |
Handle |
| 23 |
77093-00 |
Blade lever |
| 24 |
20099-03 |
Spring washer |
| 25 |
75389-00 |
Screw |
| 26 |
72399-01 |
Pin cylinder |
| 27 |
71202-01 |
Hook/transformers with switch |
|
| |
| Ref. |
Part no. |
Description |
| 28 |
18871-00 |
Trigger (2 finger) |
| 29 |
6144-00 |
Shoulder screw (2 x required) |
| 30 |
18852-00 |
Valve needle |
| 31 |
18829-00 |
Spring |
| 32 |
18833-00 |
Retaining washer (2 x required) |
| 33 |
13076-08 |
O-ring, solvent-resistant |
| 34 |
77019-00 |
Housing |
| 35 |
77018-00 |
Adjusting screw |
| 39 |
77015-00 |
Cap (2 x required) |
| 40 |
72474-01 |
Spring |
| 41 |
78635-00 |
Guide screw |
| 42 |
10051-05 |
O-ring seal |
| 43 |
79310-00 |
Needle |
| 44 |
17130-00 |
Spring |
| 45 |
78350-00 |
Tab |
| 46 |
19603-10F |
Screw |
| 47 |
72375-02 |
Fluid tube seal, PTFE |
| 48 |
ZZ-1141-1 |
Paint tube |
| 49 |
11842-28 |
Paint fitting swivel joint |
| 50 |
73753-00 |
Bracket |
| 50A |
19603-06F |
Screw set |
|
| |
| Ref. |
Part no. |
Description |
| 51 |
73351-00 |
Locknut |
| 52 |
7554-11 |
O-ring (2 x required) |
| 53 |
11842-19 |
Air connection |
| 54 |
78084-xx |
Low-voltage cable compl. (for Standard 9040/MGS) |
|
78085-xx |
Low-voltage cable compl. (for Aviator) |
| 55 |
7994-xx |
Fluid line assembly |
| 56 |
74187-xx |
Air hose (standard) |
| 59 |
76875-11 |
Plug assembly for low voltage cable (for Standard 9040/MGS) |
|
76875-12 |
Plug assembly for low voltage cable (for Aviator) |
| 59A |
7554-08 |
O-ring, solvent-resistant (3 x required) |
| 59B |
7554-10 |
O-ring, solvent-resistant |
| 59C |
7554-12 |
O-ring, solvent-resistant |
| 60 |
72209-05 |
O-ring (2 x required) |
| 61 |
7720-01-k3 |
Fluid filter 127 μm |
|
7720-02 |
Fluid filter 230 μm |
| 62 |
72468-00 |
Spring hose |
| 64 |
ZZ-1146 |
Double nipple, (AG) |
| 65 |
72468-00 |
Nozzle wrench (not shown) |
| 66 |
19749-00 |
Universal wrench (not shown) |
| 69 |
76428-00 |
Ball seat wrench (not shown) |
| 70 |
20254-01 |
Spanner (not shown) |
| 71 |
78823-00 |
Adjusting nut |
| 72 |
78824-00 |
Compression spring |
| 73 |
79001-14 |
O-ring, solvent-resistant |
|
| |
Akcesoria |
| |
| 76580-22001 |
Control unit |
| 74188-AA |
Air hose set |
| 71202-01 |
Hook/transformers with switch |
| 71202-00 |
Hook /transformers without switch |
| GC-100-K5 |
Protective sleeve for gun (Pack of 5) |
| 59972-00 |
Cascade grease |
| 76102-00 |
Gun hanger |
| 76633-00 |
Conductive gloves |
| 77136-01 |
Conversion kit, REM to M90 |
| LKIT0012-02 |
M 90 Seal kit |
| LKIT0012-03 |
M 90 Repair kit |
| 74147-00 |
Quick change connection, High pressure, 1/4˝ (IG) |
| 20404-00 |
Quick change connection, High pressure,1/4˝ (AG) |
| 75221-00 |
Swivel pipe fitting High pressure, (AG) |
| 75980S36211 |
Aviator, pneumatic voltage supply for cascade guns |
|
| |
|

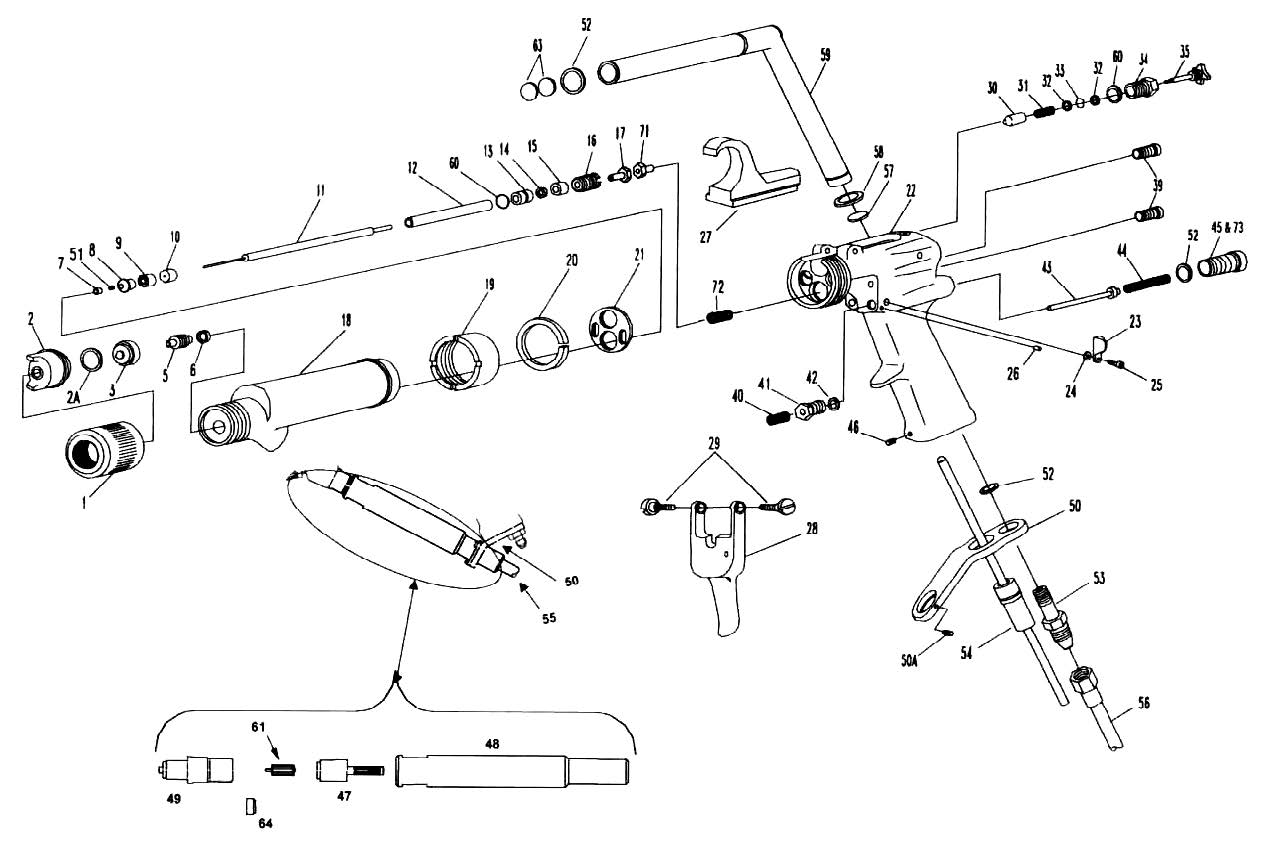

| M90 Cascade(Water-based paint) - Pistolet elektrostatyczny ręczny |
| |
 |
| |
| Ref. |
Part no. |
Description |
| 1 |
77095-00 |
Retaining ring |
|
72353-00 |
Retaining ring, optional |
| 2 |
78140-00 |
Air cap, standard |
|
77076-00-S |
Air cap, optional |
|
72371-00 |
Air cap, optional |
| 2A |
LSOR0005 |
O-ring, solvent-resistant |
| 3 |
77080-xxxx |
Fluid nozzle |
|
11843-xxxx |
Fluid nozzle - REM Classic |
| 5 |
75442-00 |
Valve screw, standard |
|
509206 |
Valve screw, optional |
| 6 |
72375-03 |
Seal |
| 7 |
73350-00 |
Valve ball |
| 8 |
73344-00 |
Spreader seal |
| 9 |
73345-00 |
Seal U-cap |
| 10 |
73346-00 |
Pusher seal |
| 11 |
73352-00 |
Needle shaft |
| 12 |
72378-01 |
Tube packing |
| 13 |
73347-00 |
Rear seal |
| 14 |
74330-00 |
U-cup seal |
| 15 |
73348-00 |
Rear retainer |
| 16 |
73354-00 |
Packing nut |
| 17 |
78822-00 |
Barrel retainer nut |
| 18 |
77133-00 |
Gun assembly |
| 19 |
75324-00 |
Union nut |
| 20 |
75327-00 |
Retaining ring |
| 21 |
LREM0012-00 |
Gasket |
| 22 |
78641-00 |
Handle |
| 23 |
77093-00 |
Blade lever |
|
| |
| Ref. |
Part no. |
Description |
| 24 |
20099-03 |
Spring washer |
| 25 |
75389-00 |
Screw |
| 26 |
72399-01 |
Pin cylinder |
| 27 |
18824-00 |
Hook |
| 28 |
18871-00 |
Trigger (2 finger) |
| 29 |
6144-00 |
Shoulder screw (2 x required) |
| 30 |
78788-00 |
Valve needle |
| 31 |
18829-00 |
Spring |
| 32 |
18833-00 |
Retaining washer (2 x required) |
| 33 |
13076-08 |
O-ring, solvent-resistant |
| 34 |
77019-00 |
Guide screw |
| 35 |
77018-00 |
Adjusting screw |
| 39 |
77015-00 |
Cap (2 x required) |
| 40 |
72474-01 |
Spring |
| 41 |
78635-00 |
Guide screw |
| 42 |
10051-05 |
O-ring seal |
| 43 |
79310-00 |
Needle |
| 44 |
18130-00 |
Spring |
| 45 |
79317-00 |
Cap |
| 46 |
19603-16F |
Set screw handle |
| 47 |
ZZ-1142 |
Filter housing |
|
| |
| Ref. |
Part no. |
Description |
| 48 |
ZZ-1141 |
Paint tube |
| 49 |
ZZ-1143 |
Adapter |
| 50 |
ZZ-1145 |
Bracket |
| 50A |
19603-06F |
Screw set |
| 51 |
73351-00 |
Locknut |
| 52 |
7554-11 |
O-ring (2 x required) |
| 53 |
11842-19 |
Air connection |
| 54 |
LREA4003-xx |
High-voltage cable (for Standard 9040) |
| 55 |
HD-528N-4 |
Paint hose (yard ware) |
|
ZZ-1144 |
Clamp for paint hose |
|
M90-1112 |
Conductive hose (yard ware) |
| 56 |
74187-xx |
Air hose (Standard) |
| 57 |
14061-01 |
Contact sponge |
| 58 |
7554-10 |
O-ring |
| 59 |
70397-02 |
Resistance housing |
| 60 |
72209-05 |
O-ring (2 x required) |
| 61 |
7720-01-k3 |
Fluid filter 127 μm |
|
7720-02 |
Fluid filter 230 μm |
| 62 |
72468-00 |
Nozzle wrench |
| 63 |
14061-05 |
Contact sponge (2 x required) |
| 64 |
ZZ-1146 |
Conical gasket |
| 65 |
72468-00 |
Nozzle wrench (not shown) |
| 66 |
19749-00 |
Universal wrench (not shown) |
| 69 |
76428-00 |
Nozzle wrench (not shown) |
| 70 |
20254-01 |
Spanner (not shown) |
| 71 |
78823-00 |
Adjusting nut |
| 72 |
78824-00 |
Compression spring |
| 73 |
79001-14 |
O-ring, solvent-resistant |
|
| |
| Akcesoria |
| |
| 77070-35-1 |
High-voltage generator |
p.o.a. |
| 74187 |
Air hose set |
p.o.a. |
| 14490-00 |
Air filter set |
p.o.a. |
| GC-100-K5 |
Protective sleeve for gun (Pack of 5) |
p.o.a. |
| 59972-00 |
Cascade grease |
p.o.a. |
| 76102-00 |
Gun hanger |
p.o.a. |
| 76633-00 |
Conductive gloves |
p.o.a. |
| LKIT0012-02 |
M 90 Seal kit |
p.o.a. |
| LKIT0012-03 |
M 90 Repair kit |
p.o.a. |
|
| |
| |
|

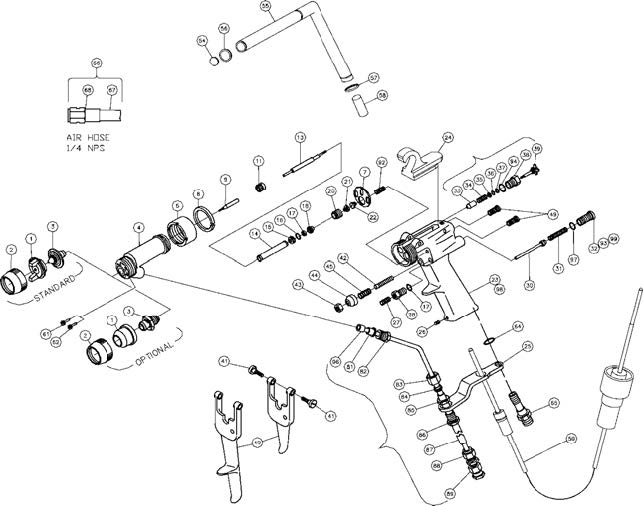

| REA III(Water-based paint) - Pistolet elektrostatyczny ręczny |
| |
 |
| |
| Ref. |
Part no. |
Description |
| 1 |
75601-00 |
Air cap, fan jet, HVLP |
|
4904-xx |
Air cap, fan jet air atomisation standard |
|
AV-1239-265R-1 |
Air cap, fan jet air atomisation optional |
|
70899-00 |
Air cap pencil jet rotation |
|
11843-49 |
Air cap pencil jet round standard |
|
11842-40 |
Air cap pencil jet round optional |
| 2 |
4903-00 |
Retaining ring, rotation |
|
73569-00 |
Retaining ring, HVLP, air atomisation, and round standard |
|
11842-35 |
Retaining ring, HVLP, air atomisation, and round optional |
| 3 |
75600-01 |
Paint nozzle, fan jet, HVLP |
|
4907-xx |
Paint nozzle, fan jet Air atomisation standard |
|
11842-33 |
Paint nozzle, fan jet Air atomisation optional |
|
70898-00 |
Paint nozzle, pencil jet, rotation |
|
11843-39 |
Paint nozzle, pencil jet, round, optional |
| 4 |
75037-00 |
Gun assembly REA III |
| 5 |
75322-00 |
Retaining nut, gun assembly |
| 6 |
75325-00 |
Retaining ring, gun assembly |
| 7 |
18872-00 |
Seal, gun assembly |
| 9 |
70430-00 |
Electrode compl. |
| 11 |
78626-00 |
Seal compl., packing cartridge, non-adjustable, REA |
| 13 |
78627-04 |
Needle shaft compl., REA |
| 14 |
18842-01 |
Packing tube |
| 15 |
78629-00 |
Rear needle seat retainer |
| 16 |
7554-08 |
O-ring, solvent-resistant |
| 17 |
10051-05 |
U-seal, spring tensioned, (2 x required) |
| 18 |
78630-00 |
Spacer, seal |
| 20 |
78631-00 |
Packing nut |
| 21 |
78632-00 |
Locking nut, trigger adjustment |
| 22 |
78633-00 |
Spring retainer, needle shaft |
| 23 |
78641-00 |
Handle assembly, conductive plastic, REA |
|
| |
| Ref. |
Part no. |
Description |
| 24 |
18824-00 |
Hook |
| 25 |
20979-00 |
Bracket for material tube: Offset (all triggers) |
| 26 |
19603-10F |
Adjusting screw |
| 27 |
72474-01 |
Compression spring |
| 28 |
78635-00 |
Retaining nut, air valve |
| 30 |
79310-00 |
Rod compl., air valve |
| 31 |
17130-00 |
Compression spring |
| 32 |
79317-00 |
Air valve cap |
| 33a |
18851-01 |
Jet regulating valve (Pos. 33-39 and 94) |
|
|
Air atomisation |
| 33 |
18852-00 |
Valve needle, air atomisation |
| 34 |
18829-00 |
Compression spring |
| 35 |
18833-00 |
Washer (2 x required) |
| 36 |
13076-08 |
O-ring, solvent-resistant |
| 37 |
18833-00 |
Washer |
| 38 |
77019-00 |
Guide screw |
| 39 |
77018-00 |
Adjusting screw |
| 40 |
18871-00 |
Trigger, short, 2 finger (All holders) |
|
20974-00 |
Trigger, long, 4 finger (only for Offset holder) |
|
| |
| Ref. |
Part no. |
Description |
| 41 |
6144-00 |
Threaded pin (2 x required) |
| 42 |
20976-00 |
Adjusting screw |
| 43 |
7733-07 |
Hexagon nut |
| 44 |
77017-00 |
Knob, trigger stop |
| 45 |
20977-00 |
Compression spring |
| 49 |
77015-00 |
Valve spring cap (2 x required) |
| 50 |
9704-16 |
Material tube for 20979-00 Offset bracket |
| 54 |
14061-01 |
Contact sponge |
| 55 |
70397-02 |
Resistance housing |
| 56 |
7554-11 |
O-ring, solvent-resistant |
| 57 |
7554-10 |
O-ring, solvent-resistant |
| 58 |
14061-01 |
Contact sponge |
| 59 |
LREA4003-xx |
High-voltage cable |
| 61 |
74963-02 |
Reducer, air atomisation, black |
| 62 |
74963-03 |
Reducer, HVLP, white |
| 64 |
7554-11 |
O-ring, solvent-resistant |
| 65 |
18847-01 |
Connector, air inlet, 1/4˝ NPS (AG) |
| 66 |
14614-xx |
Air connection compl. (Ref. 67 - 68) |
| 67 |
6919-00 |
Air hose 5/16˝ ID (bulkhead lead-through - no nipples) |
| 68 |
14628 |
Connector for air hose (2 x required) (set only) |
|
72306-xx |
Paint hose 3/16˝ ID |
|
74180-xx |
Paint hose 1/4˝ ID |
| 81 |
72308-00 |
Ferrule |
| 82 |
72309-00 |
Connection for paint hose |
| 83 |
3587-02 |
Nut |
| 84 |
72315-00 |
Ferrule, conductive |
| 85 |
10553-05 |
Nut |
| 86 |
72310-00 |
Connector |
|
| |
| Ref. |
Part no. |
Description |
| 87 |
72307-xx |
Paint hose 3/16˝ ID |
|
74179-xx |
Paint hose 1/4˝ ID |
| 88 |
6241-06 |
Nut and ferrule |
| 89 |
7787-03 |
Swivel pipe fitting |
| 92 |
78636-00 |
Compression spring |
| 93 |
79001-14 |
O-ring, solvent-resistant |
| 94 |
72209-05 |
O-ring, solvent-resistant |
| 96 |
76993-00 |
Spacer |
| 97 |
7554-11 |
O-ring, solvent-resistant |
| 98 |
78696-00 |
Handle, Soft-Touch |
|
| |
| Akcesoria |
| |
| LKIT0011-00 |
REA Seal kit |
| LKIT0011-01 |
REA IV Repair kit |
| 14614L50 |
Air hose |
| 14615L50 |
Paint hose |
| GC-100-K5 |
Protective sleeve for gun (Pack of 5) |
| 14490-00 |
Air filter set |
| 75038-01 |
Spare-parts kit gun assembly |
| 59972-00 |
Cascade grease |
| 72118-00 |
Push-Pull jet adjustment |
| 75734-01 |
HVLP conversion kit |
| 76102-00 |
Gun hanger |
| 76633-00 |
Conductive gloves |
| 75228-01/02/03 |
Paint tube |
|
| |
|
| REA IV (Solvent-based paint) - Pistolet elektrostatyczny ręczny |
| |
| Ref. |
Part no. |
Description |
| 42 |
20976-00 |
Adjusting screw |
| 43 |
7733-07 |
Hexagon nut |
| 44 |
77017-00 |
Knob, trigger stop |
| 45 |
20977-00 |
Compression spring |
| 49 |
77015-00 |
Valve spring cap (2 x required) |
| 50 |
9704-16 |
Material tube for 20979-00: Offset bracket |
|
9704-16 |
Material tube for 70441-00 45° bracket |
| 51 |
70399-00 |
Paint tube connection for 20979-00 Offset bracket |
|
70442-00 |
Paint tube connection for 70441-00 45° bracket |
| 52 |
10553-06 |
Locking nut, Offset and 45° |
| 53 |
3587-03 |
Nut and ferrule |
| 54 |
14061-01 |
Conductive plug |
| 55 |
70397-01 |
Resistance housing |
| 56 |
7554-11 |
O-ring, solvent-resistant |
| 57 |
7554-10 |
O-ring, solvent-resistant |
| 58 |
14061-01 |
Conductive plug |
| 59 |
LREA4002-xx |
High-voltage cable |
| 61 |
74963-02 |
Reducer, air atomisation, black |
| 62 |
74963-03 |
Reducer, HVLP, white |
| 63 |
75228-11 |
Paint tube, 093˝ ID |
|
75228-0-12 |
Paint tube, 250˝ ID |
|
75228-0-13 |
Paint tube, 125˝ ID |
| 64 |
7554-11 |
O-ring, solvent-resistant |
| 65 |
18847-01 |
Connector, air inlet, 1/4˝ NPS (AG) |
| 66 |
14614-xx |
Air connector compl. (Ref. 67 - 71) |
| 67 |
14615-xx |
Paint fitting compl. (Ref. 67 - 71) |
| 67 |
6919-xx |
Air hose 5/16˝ ID (bulkhead lead-through – no nipples) |
| 67 |
77031-xx |
Paint hose 1/4˝ ID (bulkhead lead-through – no nipples) |
|
| |
| Akcesoria |
| |
| 77070-30-1 |
High-voltage generator |
| LKIT0011-00 |
REA Seal kit |
| LKIT0011-02 |
REA IV Repair kit |
| GC-100-K5 |
Protective sleeve for gun (Pack of 5) |
| 14490-00 |
Air filter set |
| 14614L50 |
Air hose |
| 14615L50 |
Paint hose |
| 75038-02 |
Spare-parts kit for gun assembly |
| 59972-00 |
Cascade grease |
| 72118-00 |
Push-Pull jet adjustment |
| 75734-01 |
HVLP conversion kit |
| 76102-00 |
Gun hanger |
| 76633-00 |
Conductive gloves |
| 75228-11/12/13 |
Paint tube |
|
| |
|
| REA 90 (Solvent-based paint) - Pistolet lakierniczy ręczny elektrostatyczny |
| |
 |
| |
| Ref. |
Part no. |
Description |
| 1 |
4903-00 |
Retaining ring, rotation |
|
73569-00 |
Retaining ring, HVLP, air atomisation, and round |
| 2 |
75601-00 |
Air cap, fan jet HVLP |
|
4904-xx |
Air cap fan jet Air atomisation |
|
70899-00 |
Air cap, pencil jet, rotation |
|
LREA0002-00 |
Air cap, pencil jet round |
| 3 |
75600-01 |
Paint nozzle, fan jet HVLP |
|
4907-xx |
Paint nozzle, fan jet Air atomisation |
|
70898-00 |
Paint nozzle, pencil jet, rotation |
|
LREA0003-00 |
Paint nozzle, pencil jet, round |
| 4 |
75791-00 |
Gun assembly REA-90 |
| 5 |
74963-02 |
Pressure reducer, air atomisation, black |
| 6 |
74963-03 |
Pressure reducer, HVLP, white |
| 7 |
75323-00 |
Retaining nut, gun assembly |
| 8 |
75326-00 |
Retaining ring, gun assembly |
| 9 |
70430-00 |
Electrode compl. |
| 11 |
78626-00 |
Seal compl., packing cartridge, non-adjustable, REA |
| 13 |
78627-04 |
Needle shaft compl., REA |
| 14 |
18842-01 |
Packing tube |
| 15 |
78629-00 |
Rear needle seat retainer |
| 16 |
7554-08 |
O-ring, solvent-resistant |
| 17 |
10051-05 |
U-seal, spring tensioned, (2 x required) |
| 18 |
78630-00 |
Spacer, seal |
| 20 |
78631-00 |
Packing nut |
| 21 |
78632-00 |
Locking nut, trigger adjustment |
| 22 |
72360-00 |
Seal, gun assembly |
| 23 |
78641-00 |
Handle, assembly, conductive plastic, REA |
| 24 |
19603-10F |
Adjusting screw |
|
| |
| Ref. |
Part no. |
Description |
| 25 |
71202-00 |
Hook/transformer without On/Off switch |
|
71202-01 |
Hook/transformer with On/Off switch |
|
78086-00 |
Spare-parts kit for switch |
|
72532-00 |
Transformer glass, with thread |
| 26 |
20979-00 |
Material tube bracket: Offset (all trigger) |
|
70441-00 |
45° Material tube bracket: (only 2 finger trigger) |
| 27 |
72474-01 |
Compression spring |
| 28 |
78635-00 |
Retaining nut, air valve |
| 30 |
78639-00 |
Rod compl., air valve |
| 31 |
78640-00 |
Compression spring |
| 33 |
78634-00 |
Cap, air valve |
| 34 |
18851-01 |
Spreader valve, air atomisation |
|
75133-00 |
Jet regulating, valve, HVLP |
| 35 |
18852-00 |
Needle air atomisation |
|
75132-00 |
Needle, HVLP |
| 36 |
18829-00 |
Compression spring |
| 37 |
18833-00 |
Washer (2 x required) |
| 38 |
13076-08 |
O-ring, solvent-resistant |
| 39 |
72209-05 |
O-ring, solvent-resistant |
| 40 |
77019-00 |
Retaining nut, spreader valve |
| 41 |
77018-00 |
Adjusting knob |
| 42 |
18871-00 |
Trigger short, 2 finger (All holders) |
|
20974-00 |
Trigger long, 4 finger (only for offset holder) |
|
73647-02 |
Adjusting screw (not shown) |
| 43 |
6144-00 |
Threaded pin (2 x required) |
| 44 |
7733-07 |
Hexagon nut |
| 45 |
77017-00 |
Knob, trigger stop |
|
| |
| Ref. |
Part no. |
Description |
| 46 |
20977-00 |
Compression spring |
| 47 |
20976-00 |
Adjusting screw, trigger stop |
| 51 |
77015-00 |
Valve spring cap (2 x required) |
| 52 |
76993-00 |
Spacer |
| 53 |
72308-00 |
Union nut |
| 54 |
72309-00 |
Paint tube connection |
| 55 |
9704-16 |
Material tube for 20979-00 Offset bracket |
|
9704-16 |
Material tube for 70441-00 45° bracket |
| 56 |
3587-03 |
Union nut |
| 57 |
10553-06 |
Locking nut, offset and 45° |
| 58 |
70399-00 |
Paint tube connection for 20979-00 Offset bracket |
|
70442-00 |
Paint tube connection for 45° bracket |
| 69 |
7554-11 |
O-ring, solvent-resistant (2 x required) |
| 70 |
18847-01 |
Connector, air inlet, 1/4˝ NPS (AG) |
| 71 |
14614-xx |
Air connection compl. (Ref. 72 - 76) |
|
14615-xx |
Paint connection compl. (Ref. 72 - 76) |
| 72 |
6919-xx |
Air hose 5/16˝ ID (bulkhead lead-through - no nipples) |
|
77031-xx |
Paint hose 1/4˝ ID (bulkhead lead-through - no nipples) |
| 73 |
LSFI0027-00 |
Connector for air hose (2 x required) (set only) |
|
14628-00 |
Connector for paint hose (2 x required) (set only) |
| 74 |
7617-00 |
Ferrule for paint hose |
| 75 |
14599-00 |
Nut for paint hose |
| 76 |
7623-00 |
Hose nipple for paint hose |
| 77 |
78084-xx |
Low-voltage cable for Standard 9040/MGS |
|
78085-xx |
Low-voltage cable for Aviator - All devices |
| 78 |
76875-13 |
Plug assembly for Standard 9040 |
|
76875-12 |
Plug assembly for Aviator |
|
76875-11 |
Plug assembly for MGS |
| 79 |
7554-08 |
O-ring, solvent-resistant |
| 80 |
7554-12 |
O-ring, solvent-resistant |
| 81 |
75228-11 |
Paint tube, 093˝ ID |
|
75228-12 |
Paint tube, 250˝ ID |
|
75228-13 |
Paint tube, 125˝ ID |
| 82 |
78633-00 |
Spring retainer |
| 83 |
78636-00 |
Compression spring |
| 84 |
SSG-8137 |
O-ring, solvent-resistant |
| 85 |
78696-00 |
Handle, Soft-Touch |
|
| |
| Akcesoria |
| |
| 76580-72001 |
Control unit |
| LKIT0011-00 |
REA Seal kit |
| LKIT0011-01 |
REA90 Repair kit |
| GC-100-K5 |
Protective sleeve for gun (Pack of 5) |
| 75228-01/02/03 |
Paint tube |
| 75038-06 |
Spare-parts kit for gun assembly |
| 71202-01 |
Hook/transformer with switch |
| 71202-00 |
Hook/transformer without switch |
| 14490-00 |
Air filter set |
| 14614-BB |
Air hose |
| 14615-BB |
Paint hose |
| 59972-00 |
Cascade grease |
| 72118-00 |
Push-Pull jet adjustment |
| 75734-01 |
HVLP conversion kit |
| 76102-00 |
Gun hanger |
| 76633-00 |
Conductive gloves |
| 75980S36211 |
Aviator, pneumatic voltage supply for cascade guns |
|
| |
|

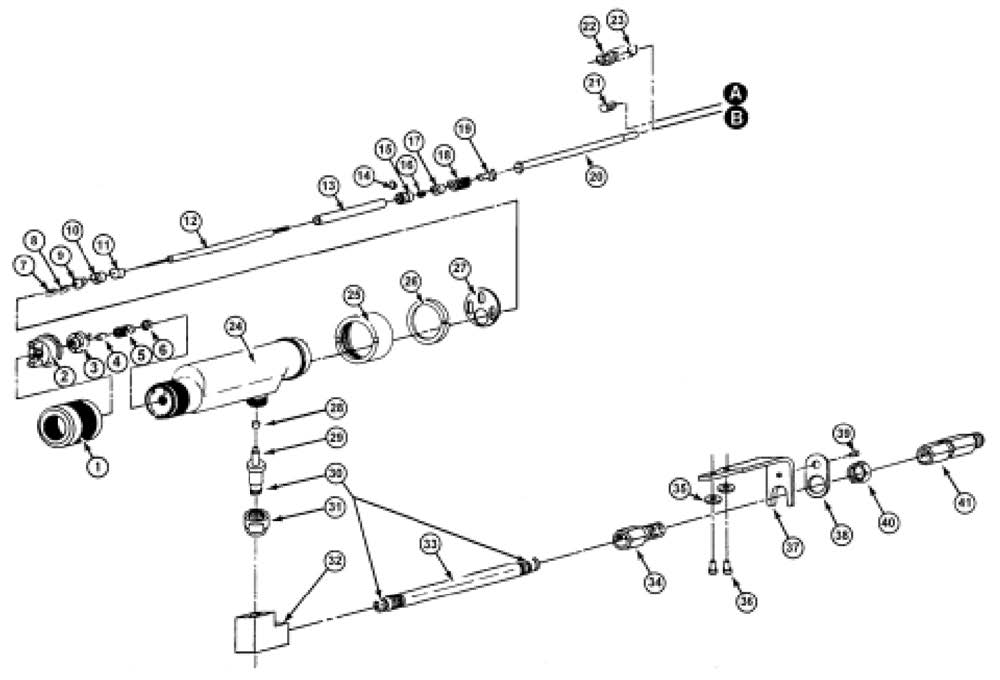

| REM-A - Pistolet lakierniczy automatyczny elektrostatyczny |
| |
 |
| |
| Ref. |
Part no. |
Description |
| 1* |
|
Retaining nut |
| 2* |
|
Air cap/nozzle holder |
| 3* |
|
Fan jet nozzle |
|
|
Pencil jet nozzle |
| 4 |
11844-02 |
Nozzle seal |
| 5 |
72464-00 |
Valve screw |
| 5,1 |
509205 |
Pos. 4 + 5 (Kit) |
| 6 |
72375-03 |
PTFE seal |
| 7** |
73350-00 |
Valve ball |
| 8** |
73351-00 |
Locknut |
| 9** |
73344-00 |
Pressure ring |
| 10** |
73345-00 |
Gasket |
| 11** |
73346-00 |
Support ring |
| 12** |
73352-00 |
Needle shaft |
| 13** |
72378-01 |
Spacer tube |
| 14** |
72209-05 |
O-ring |
| 15** |
73347-00 |
Seal holder |
| 16** |
74330-00 |
U seal |
| 17** |
73348-00 |
Spacer ring |
| 18** |
73354-00 |
Packing screw |
| 19** |
72374-00 |
Adjusting nut |
| 20 |
74192-00 |
Valve rod |
| 21 |
9937-12C |
Screw set |
| 22 |
20053-00 |
Nut |
| 23 |
13076-10 |
O-ring, PTFE |
| 24 |
75761-00 |
Gun assembly |
| 25 |
LSMM0002-00 |
Retaining nut |
|
| |
| Ref. |
Part no. |
Description |
| 26 |
72494-00 |
Snap ring |
| 27 |
18872-00 |
Seal |
| 28 |
72375-02 |
PTFE seal |
| 29 |
74085-00 |
Connection fitting |
| 30 |
72209-04 |
PTFE seal |
| 31 |
72357-00 |
Retaining nut |
| 32 |
74086-00 |
Elbow connection |
| 33 |
73760-00 |
Paint tube |
| 34 |
72381-01 |
Filter |
| 35 |
7734-04 |
Washers (2x) |
| 36 |
8212-16F |
Screws (2x) |
| 37 |
74088-00 |
Bracket |
| 38 |
72367-00 |
Retaining ring |
| 39 |
72406-01 |
Screw |
| 40 |
72382-01 |
Retaining nut |
| 41 |
72400-00 |
Connection |
|
|
|
| * |
SeeTable |
Nozzle selection tables |
| ** |
73353-01 |
Needle shaft compl. |
| + |
508098 |
Paint filter compl. 50 mesh/297 μm |
| + |
508101 |
Paint filter compl. 100 mesh/149 μm |
| + |
508110 |
Paint filter compl. 200 mesh/74 μm |
| + |
233137 |
Replacement strainer, 50 mesh |
| + |
233145 |
Replacement strainer, 100 mesh |
| + |
233153 |
Replacement strainer, 200 mesh |
|
| |
 |

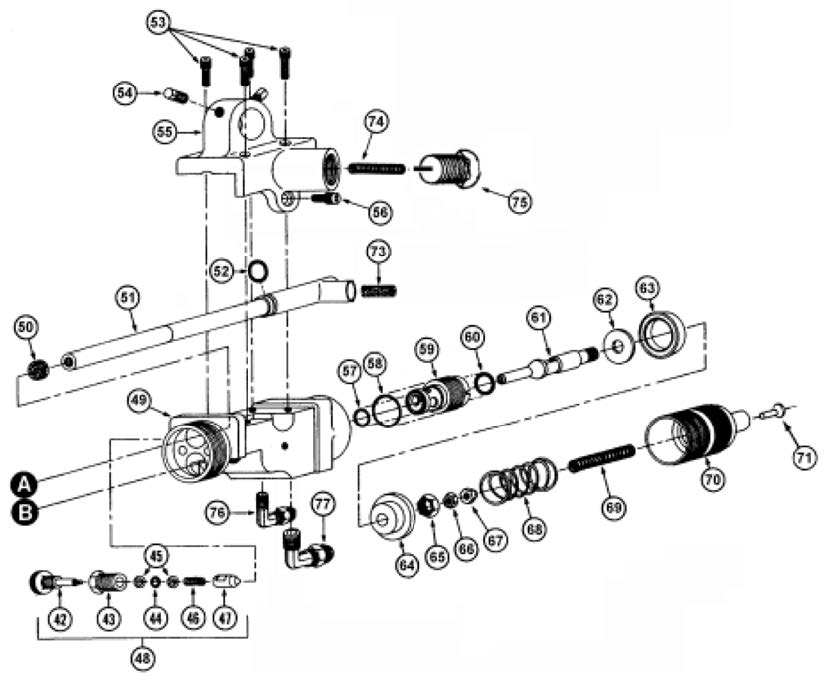

| |
| Ref. |
Part no. |
Description |
| 42 |
18840-00 |
Retainig screw |
| 43 |
18853-00 |
Rod assembly |
| 44 |
13076-08 |
O-ring |
| 45 |
18833-00 |
Washers (2x) |
| 46 |
18829-00 |
Spring |
| 47 |
18852-00 |
Valve needle |
| 48 |
18851-00 |
Metering valve compl. |
| 49 |
20947-01 |
Drive housing |
| 50 |
14061-05 |
Contact sponge |
| 51 |
70397-02 |
Resistance housing |
| 52 |
7554-11 |
O-ring |
| 53 |
8212-20C |
Screws (4x) |
| 54 |
8666-16C |
Mounting screws (2x) |
| 55 |
20062-00 |
Drive housing cover |
| 56 |
8212-16C |
Screw |
| 57 |
13076-13 |
O-ring, PTFE |
| 58 |
7554-33 |
O-ring, Viton |
| 59 |
20054-00 |
Bearing |
| 60 |
7554-28 |
O-ring, Viton |
| 61 |
20055-00 |
Piston shaft |
| 62 |
20057-00 |
Washer |
| 63 |
7723-06 |
Radial packing ring |
| 64 |
20056-00 |
Piston |
| 65 |
7733-44 |
Nut |
| 66 |
7733-07 |
Nut |
| 67 |
20942-00 |
Cap nut |
|
| |
| Ref. |
Part no. |
Description |
| 68 |
9334-00 |
Spring |
| 69 |
17615-00 |
Spring |
| 70 |
20943-00 |
Piston housing |
| 71 |
7730-08F |
Screw |
| 73 |
14061-08 |
Contact sponge |
| 74 |
73359-00 |
Spring |
| 75 |
101953 |
Locking screw |
| 76 |
Connections |
Control air |
|
ESTA-408 |
Elbow, 1/8˝-4mm |
|
ESTA-408-2 |
Elbow, 1/8˝-6mm |
|
ESTA-409 |
Elbow, 1/8˝-8mm |
| 77 |
Connections |
Auxiliary air |
|
ESTA-408-3 |
Elbow, _˝-6mm |
|
ESTA-409-1 |
Elbow, _˝-8mm |
|
ESTA-409-2 |
Elbow, _˝-12mm |
|
| |
| Akcesoria |
| |
| 59972-00 |
High-voltage grease |
| JAC-90-D |
Nozzle cleaning needle |
| 505790 |
Packing wrench |
| 509310 |
Packing wrench |
| 507121 |
Nozzle wrench |
| 504009 |
Fork wrench |
| 11842-18 |
Special wrench for valve |
| 19749-00 |
Special wrench for retaining nut |
|
| |
| |
| |
| |
